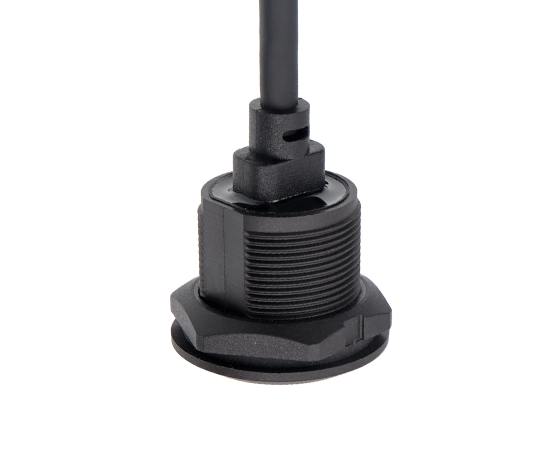

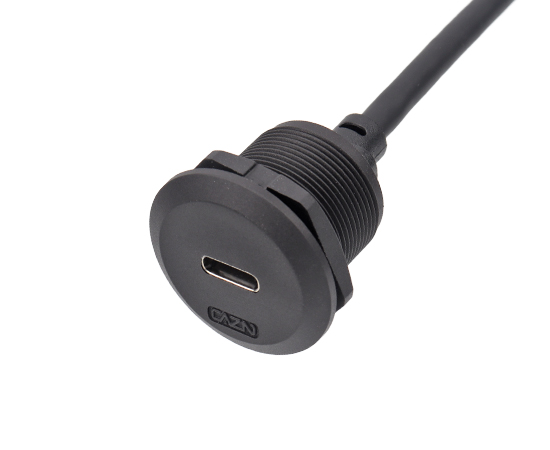

EP-TYPE-C Panel front installation female socket/USB male plug(Threaded)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass/Phosphor copper gold-plated |
| Sealing material: | Epoxy resin/rubber |
| Coupling: | Thread (T) |
| Termination Way: | Solder |
| Contact impedance: | ≤5mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance: | ≥100mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Waterproof grade: | IP67，IP68 |
| Cable material: | PVC Jacket |
| Rated current: | 1~3A |
| Rated voltage: | 5~20V |
| Product Name | Pins | Model-Shielded | Model-Unshielded | 3D Download | 2D Download |

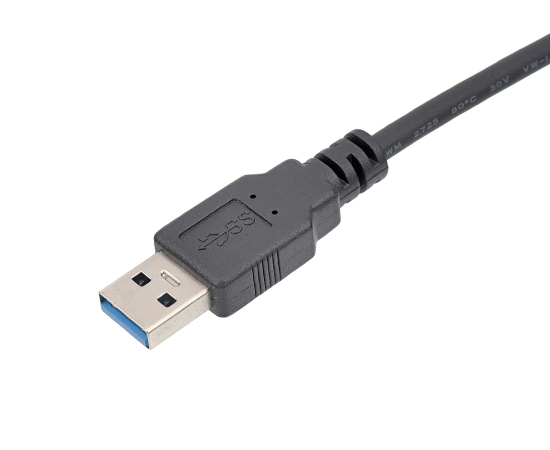

EP-TYPE-C Panel front installation female socket /USB male plug(Threaded)-xxM-PVC | USB2.0 | EP-FU2-PWF/MU2-NWA-xxPV-S | EP-FU2-PWF/MU2-NWA-xxPV | ||
EP-TYPE-C Panel front installation female socket /USB male plug(Threaded)-xxM-PVC | USB3.0 | EP-FU3-PWF/MU3-NWA-xxPV-S | EP-FU3-PWF/MU3-NWA-xxPV | ↓ | |
EP-TYPE-C Panel front installation female socket /USB male plug(Threaded)-xxM-PVC | USB3.1 | EP-FU3.1-PWF/MU3.1-NWA-xxPV-S | EP-FU3.1-PWF/MU3.1-NWA-xxPV | ||
EP-TYPE-C Panel front installation female socket /USB male plug(Threaded)-xxM-PVC | USB4.0 | EP-FU4-PWF/MU4-NWA-xxPV-S | EP-FU4-PWF/MU4-NWA-xxPV |
*If you need to choose other wire, please consult customer service.
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

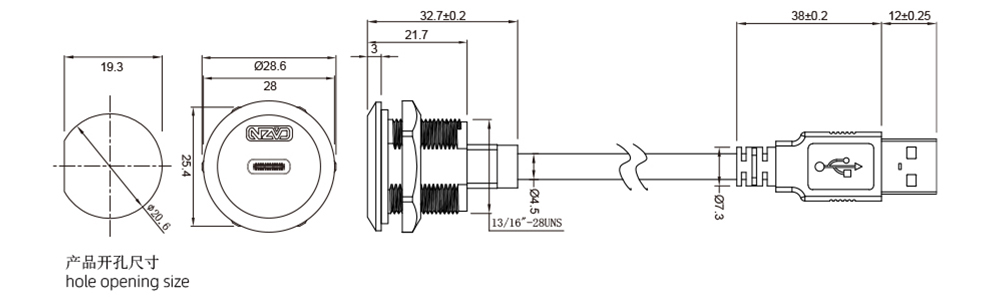

DIMENSIONS
