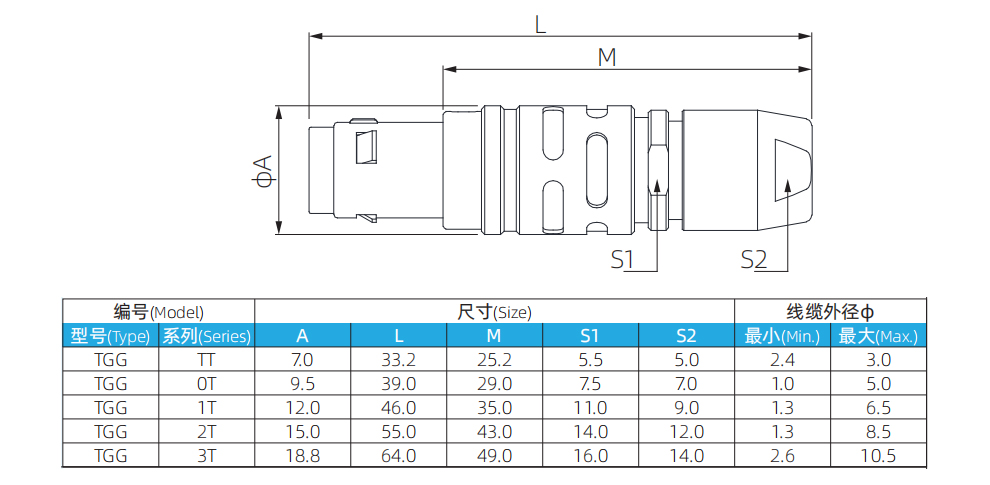

T Series - TGG Straight plug
TECHNICAL PARAMETER
| Durability： | >1000 Cycles |
| Humidity： | Up to 95% at 60°C/140°F |
| Operating temperature： | -55℃ ~ +200℃ |
| Anti-vibration performance： | 10-2000 Hz,15g |
| Impact resistance： | 100g,6ms |
| Salt spray corrosion test： | >96 h |
| Protection level： | IP68 |
| Shielding performance： | >95dB (10MHz); >80dB (1GHz) |
| 2D Download | |
| 3D Download |
| Product Catalog | STA-Push Pull Series Brochure |
