BASICPARAMETERS

Rated voltage-UL:	600V
Rated current-UL:	9A
Rated voltage-IEC:	250V
Rated current-IEC:	9A
Wire range-UL:	24-18AWG
Wire range-IEC:	0.25-1mm²
Pole number:	1P
Insulation Material:	-
Contact material:	Phosphorous copper, tin plated
Wire stripping length:	7.5~9.5mm / 0.3~0.37inches
Operating temperature:	-60℃ ~ +120℃
Approval:

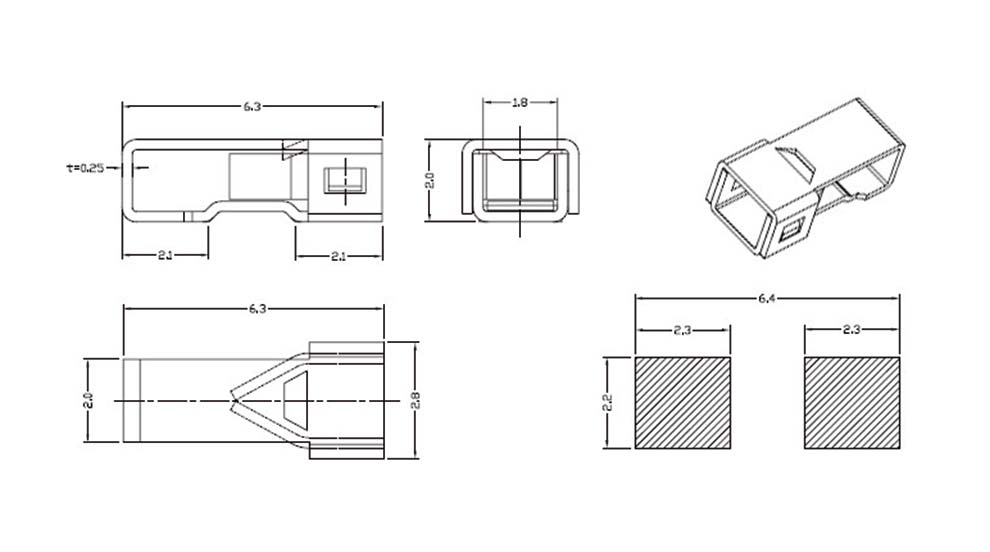

◆SMD PCB terminal block, using direct insertion cage spring terminal unit (Push-in CAGE CLAMP ®) and push button

◆Single strand wire can be directly inserted

◆Easy connection/removal of thin multi strand wires using push buttons and operating tools

◆Only 2.0 mm high

◆Roll up tape packaging, suitable for automatic assembly

◆Unified appearance: The miniaturized connection technology can meet the requirements of exquisite design

◆Compact SMD (Surface Mount Device) metal contacts can save space and easily connect wires
