BASICPARAMETERS

Pitch:	4mm
Rated voltage-UL:	320V
Rated current-UL:	9A
Rated voltage-IEC:	160V
Rated current-IEC:	9A
Wire range-UL:	24-18AWG
Wire range-IEC:	0.2-0.75mm²
Pole number:	1P、2P、3P
Insulation Material:	PPA GF UL94 V-0
Contact material:	Copper alloy, tin plated
Wire stripping length:	7~9mm / 0.28~0.35inches
Operating temperature:	-60℃ ~ +105℃
Approval:

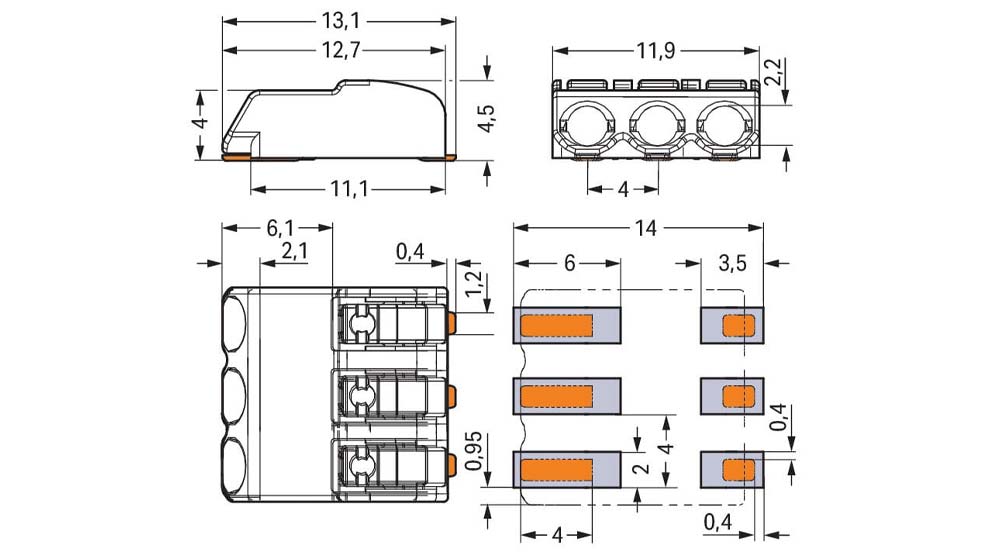

◆SMD PCB wiring terminal with push button, using direct insertion cage spring wiring unit (Push-in CAGE CLAMP ®) connection technology

◆Both single stranded wires and wires with cold pressed joints can be directly inserted

◆Easy connection and removal of thin multi strand wires through the push button

◆Only 4.5 mm high

◆Roll up tape packaging, suitable for automatic assembly
