45060X/010
BASICPARAMETERS
| Pitch: | 5.00mm(.197”) |
| Rated voltage-UL: | 300V |
| Rated current-UL: | 15A |
| Rated voltage-IEC: | 320V |
| Rated current-IEC: | 20A |
| Wire range-UL: | 22-14AWG |
| Wire range-IEC: | 2.5mm² |
| Pole number: | 02~24P |
| Insulation Material: | PA66 UL94 V-0 |
| Material & Plating of Current carrier: | Copper alloy, Tin plated |
| Insulation Resistance: | 500MΩ or more at DC500V |
| Withstanding Voltage(1Min): | 2200V/1Min |
| Rated surge voltage: | 4.0KV |
| Wire clamp unit Screw, torque Max.: | - |
| Mounting Screw, torque: | - |
| 7.0 Material of Clamp spring: | Stainless steel(GrNi) |
| Wire stripping length: | 9.0mm |
| Operating temperature: | -40℃ ~ +115℃ |
| Soldering recommend: | - |
| Approval: |   |
| Product Name | Pitch | Pole number | Part No. | 3D Download | 2D Download |
| MCS Terminal | 5.00mm(.197”) | 02~24P | 45060X/010 |
| PRODUCT CATALOG | Terminal Selection Manual |

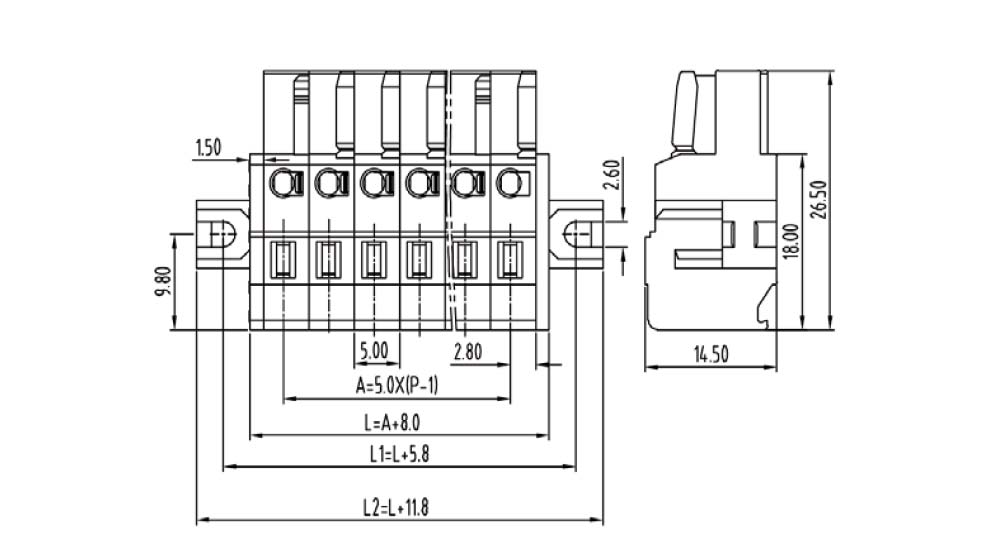

DIMENSION DRAWING
