SA500-02
BASICPARAMETERS
| Pitch: | 5.00mm |
| Rated voltage-UL: | 300V |
| Rated current-UL: | 16A |
| Rated voltage-IEC: | - |
| Rated current-IEC: | - |
| Wire range-UL: | 22-12AWG |
| Wire range-IEC: | - |
| Pole number: | 02~24P |
| Insulation Material: | PA66 UL94 V-0 |
| Material & Plating of Current carrier: | Copper alloy, Tin plated |
| Insulation Resistance: | 500MΩ or more at DC500V |
| Withstanding Voltage(1Min): | 2200V |
| Wire clamp unit Screw, torque Max.: | M2.5, 0.3Nm Max |
| Material of Clamp spring: | - |
| Wire stripping length: | 7.0mm |
| Operating temperature: | -40℃ ~ +105℃ |
| Soldering recommend: | Wave soldering, 260℃ 5S Max(Single Wave), 260℃ 10S Max(Double Wave) |
| Approval: |  |
| Product Name | Pitch | Pole number | Part No. | 3D Download | 2D Download |
| Fixed Terminal | 5.00mm | 02~24P | SA500-02 |
| PRODUCT CATALOG | Terminal Selection Manual |

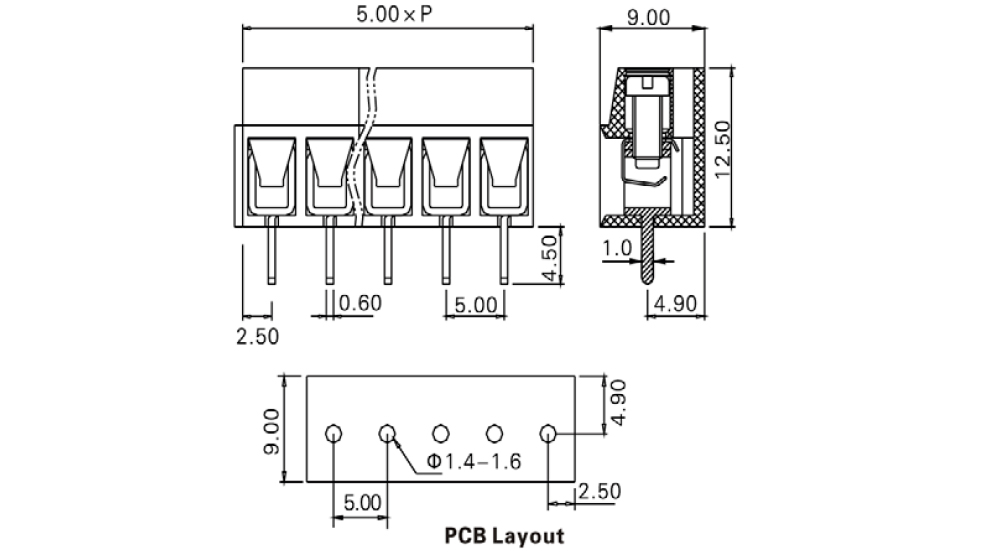

DIMENSION DRAWING
