SPA350-00（SPA381-00）
BASICPARAMETERS
| Pitch: | 3.50mm(3.81mm) |
| Rated voltage-UL: | 300V |
| Rated current-UL: | 8A |
| Rated voltage-IEC: | 150V |
| Rated current-IEC: | 10A |
| Wire range-UL: | 30-14AWG |
| Wire range-IEC: | 1.5mm² |
| Pole number: | 02~24P |
| Insulation Material: | PA66 UL94 V-0 |
| Material & Plating of Current carrier: | Copper alloy, Tin plated |
| Insulation Resistance: | 500MΩ or more at DC500V |
| Withstanding Voltage(1Min): | 2000V |
| Rated surge voltage: | 2500V |
| Wire clamp unit Screw, torque Max.: | M2, 0.2～0.25N·m |
| Material of Clamp spring: | - |
| Wire stripping length: | 6.5～7.5mm |
| Operating temperature: | -40℃ ~ +105℃ |
| Soldering recommend: | - |
| Approval: |   |
| Product Name | Pitch | Pole number | Part No. | 3D Download | 2D Download |
| Plug-in Terminal | 3.50mm | 02~24P | SPA350-00 | ||
| Plug-in Terminal | 3.81mm | 02~24P | SPA381-00 |
| PRODUCT CATALOG | Terminal Selection Manual |

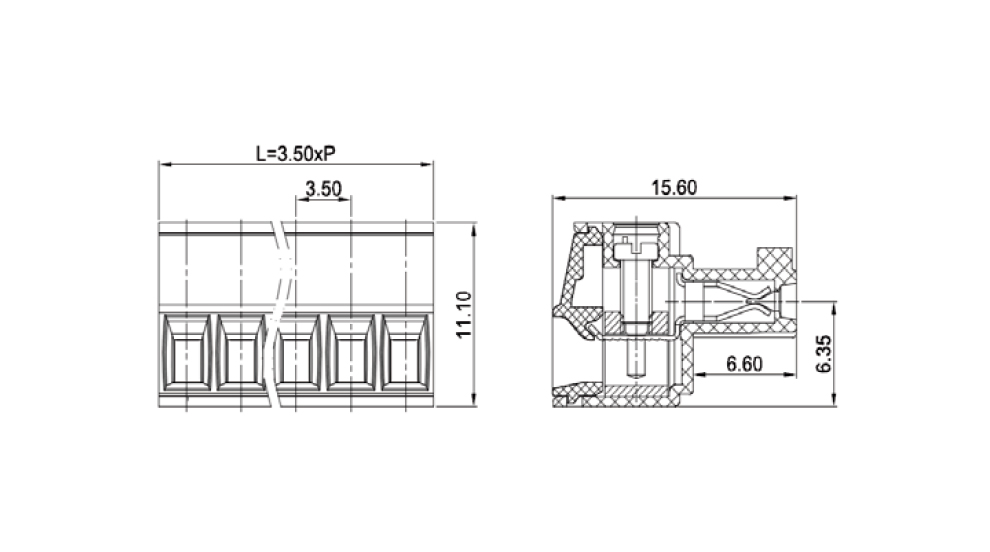

DIMENSION DRAWING
