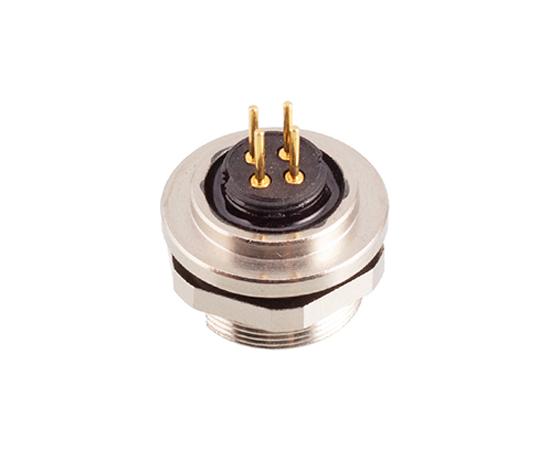

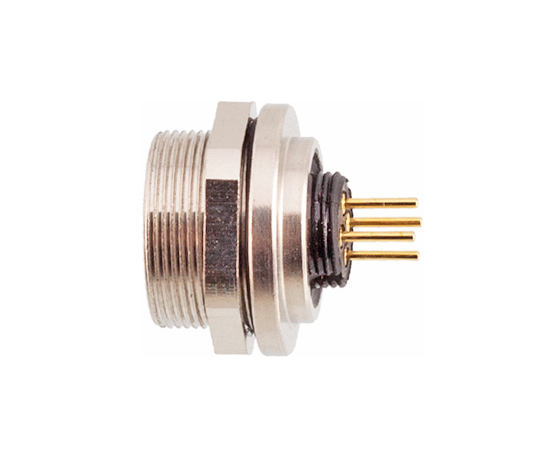

M9 Female Back Mount Socket (PCB)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤3 mΩ |
| Wiring range： | 3.0~5.0mm |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
M9 ELECTRICAL PARAMETERS
Product Name | Part No. | Pins | 3D Download | 2D Download |
M9 Female Back Mount Socket-PCB-2Pin | M9A-02PFF-GP12 | 2 | ||
M9 Female Back Mount Socket-PCB-3Pin | M9A-03PFF-GP12 | 3 | ||
M9 Female Back Mount Socket-PCB-4Pin | M9A-04PFF-GP12 | 4 | ||
M9 Female Back Mount Socket-PCB-5Pin | M9A-05PFF-GP12 | 5 | ||
M9 Female Back Mount Socket-PCB-6Pin | M9A-06PFF-GP12 | 6 | ||
M9 Female Back Mount Socket-PCB-7Pin | M9A-07PFF-GP12 | 7 | ||
M9 Female Back Mount Socket-PCB-8Pin | M9A-08PFF-GP12 | 8 |
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET
M9 PCB PINS ARRANGEMENT
