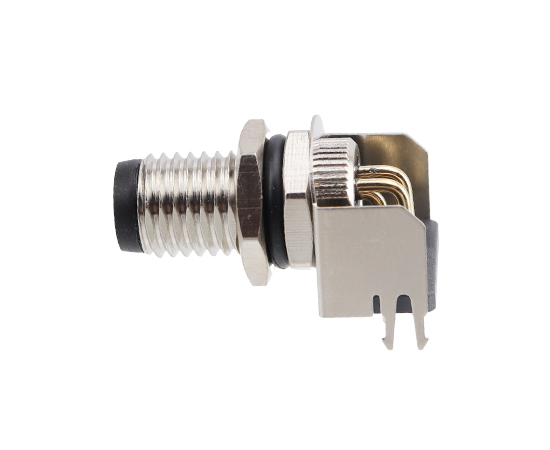

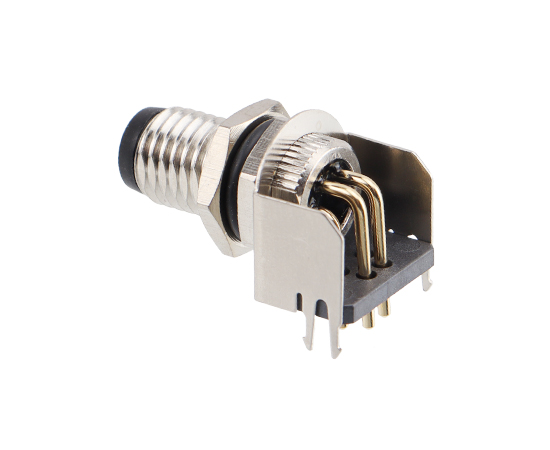

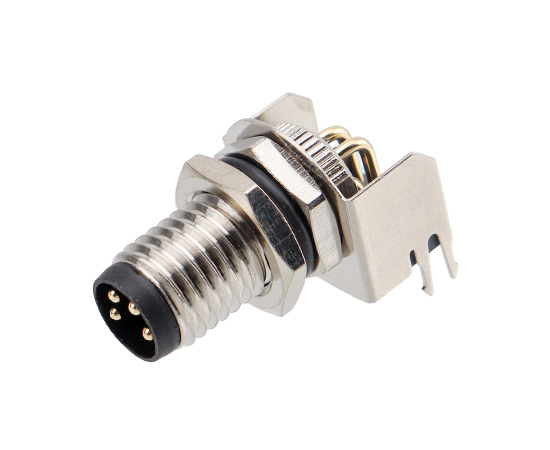

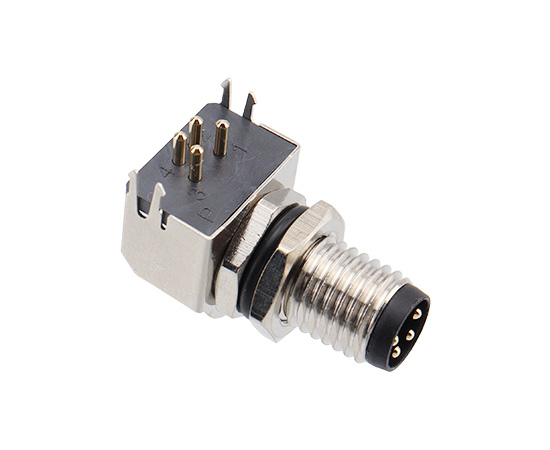

M8 Angled Male Back Mount Socket (PCB, Screw M8*1, Grounded type)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |
ELECTRICAL PARAMETERS
| Product Name | Screw | Structure | Pins | Product No. | 3D Download | 2D Download |
| M8 Angled Male Back Mount Socket-3A Pin | M8x1 | PCB,Grounded type | 3A | M8-P3A-GPL M8-JD | ||
| M8 Angled Male Back Mount Socket-4A Pin | M8x1 | PCB,Grounded type | 4A | M8-P4A-GPL M8-JD | ||
| M8 Angled Male Back Mount Socket-4D Pin | M8x1 | PCB,Grounded type | 4D | M8-P4D-GPL M8-JD | ||
| M8 Angled Male Back Mount Socket-5B Pin | M8x1 | PCB,Grounded type | 5B | M8-P5B-GPL M8-JD | ||
| M8 Angled Male Back Mount Socket-6A Pin | M8x1 | PCB,Grounded type | 6A | M8-P6A-GPL M8-JD | ||
| M8 Angled Male Back Mount Socket-8A Pin | M8x1 | PCB,Grounded type | 8A | M8-P8A-GPL M8-JD |
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET
PCB ANGLED(Grounded type)
