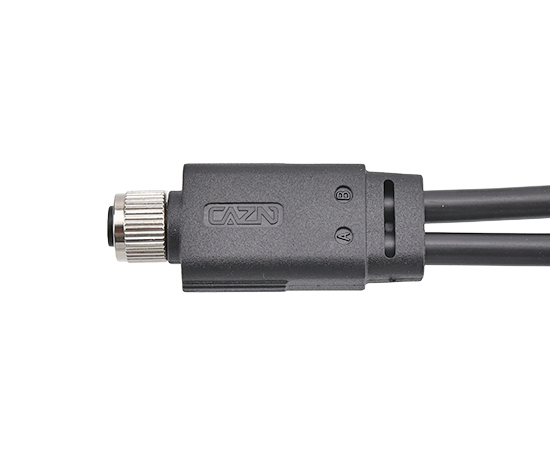

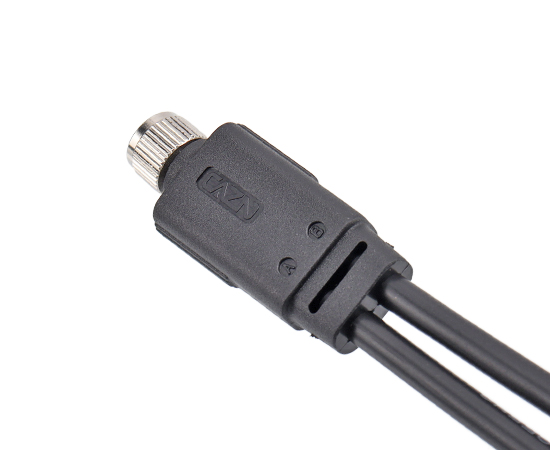

M8 Female 1 to 2 Overmolded Plug

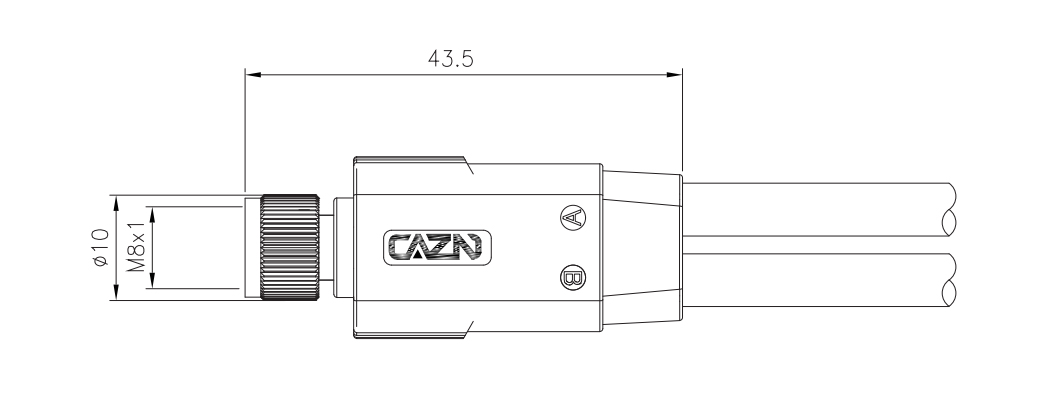

MECHANICAL PARAMETERS
| Shell material： | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Insulation impedance： | ≥100 MΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Executive standard： | IEC 61076-2-104 |
ELECTRICAL PARAMETERS
| Product Name | Part No.-Shielded | Part No.-Unshielded | Pins | 3D Download | 2D Download |
| M8 Female 1to2 Overmolded Plug-3A Pin-xxMeters-PVC Jacket | M8-S3A-MWA-1PV-S-1T2 | M8-S3A-MWA-1PV-1T2 | 3A | ||
| M8 Female 1to2 Overmolded Plug-4A Pin-xxMeters-PVC Jacket | M8-S4A-MWA-1PV-S-1T2 | M8-S4A-MWA-1PV-1T2 | 4A | ||
| M8 Female 1to2 Overmolded Plug-5B Pin-xxMeters-PVC Jacket | M8-S5B-MWA-1PV-S-1T2 | M8-S5B-MWA-1PV-1T2 | 5B | ||
| M8 Female 1to2 Overmolded Plug-6A Pin-xxMeters-PVC Jacket | M8-S6A-MWA-1PV-S-1T2 | M8-S6A-MWA-1PV-1T2 | 6A | ||
| M8 Female 1to2 Overmolded Plug-8A Pin-xxMeters-PVC Jacket | M8-S8A-MWA-1PV-S-1T2 | M8-S8A-MWA-1PV-1T2 | 8A |
*If need to choose other wires, please consult customer service.
| Product Catalog | CAZN-M Series products brochure |
| EMC Certification | View |
| RoHS Report | View |
| European Standard Series-EMC Certificate | View |
DATASHEET

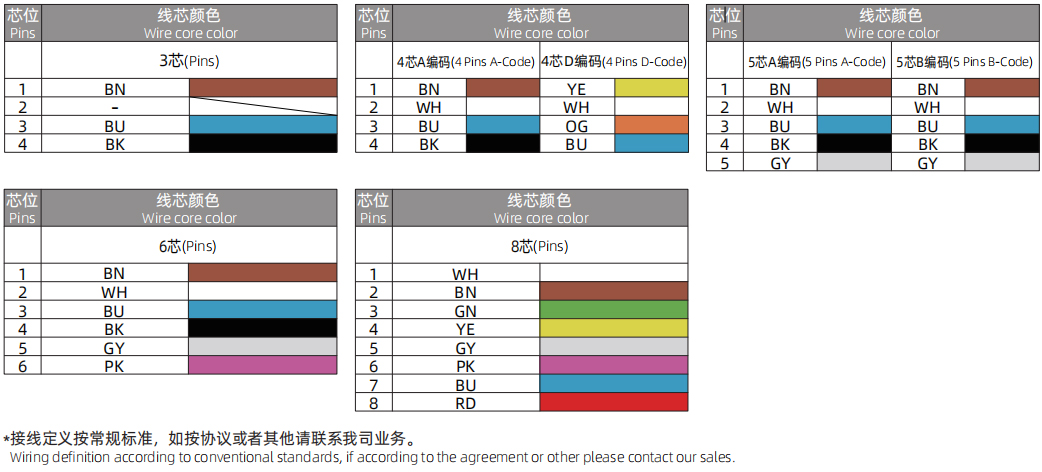

WIRE DEFINITION
