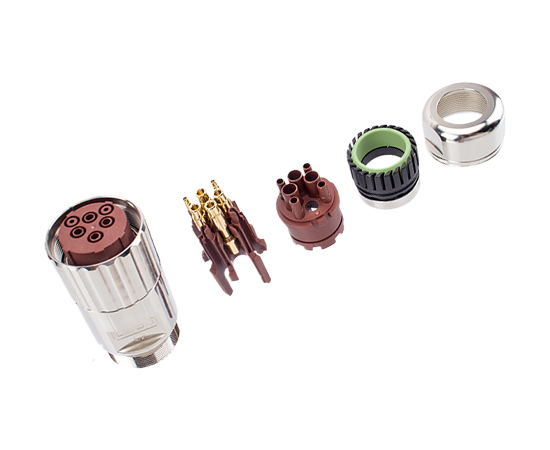

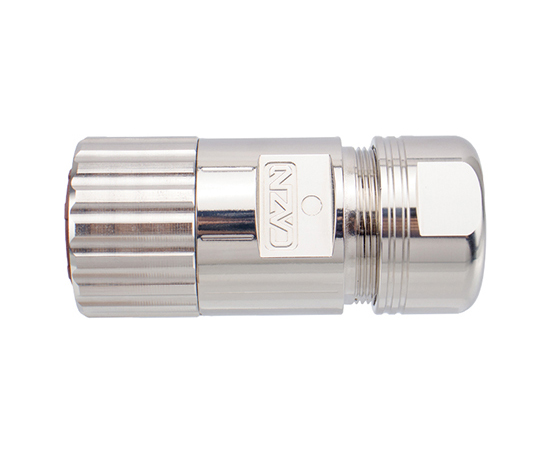

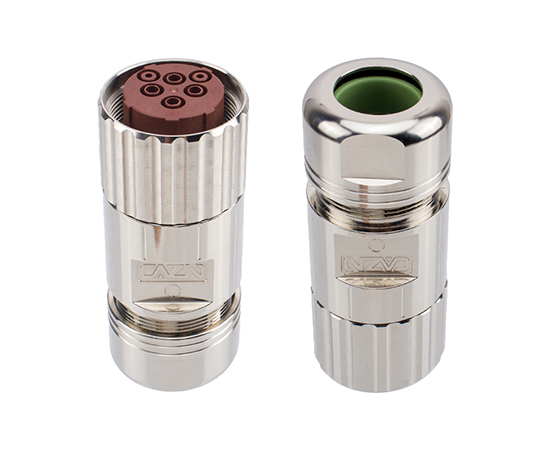

M40 Signal Straight Female Metal Assembled Plug (Crimp)
TECHNICAL PARAMETER
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA66 UL 94-V0 |
Sealing material | Rubber |
Contact material | Brass gold-plated |
Connection | Crimp |
Wiring range | 9~14mm |
Contact impedance | ≤1mΩ |
Durability | ≥50cycles |
Applicable temperature | -40℃ ~ +125℃ |
Waterproof | IP67 |
ELECTRICAL PARAMETERS
Product name | Product name | Pin number | 3DDownload | 2DDownload |
M40 straight female metal assembled plug-crimp-6pin | M40-S6P-GCA | 2+3+PE | ||
M40 straight female metal assembled plug-crimp-8pin | M40-S8P-GCA | 4+3+PE |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DIMENSION
PIN PARAMETER TABLE
WIRING DEFINITION
