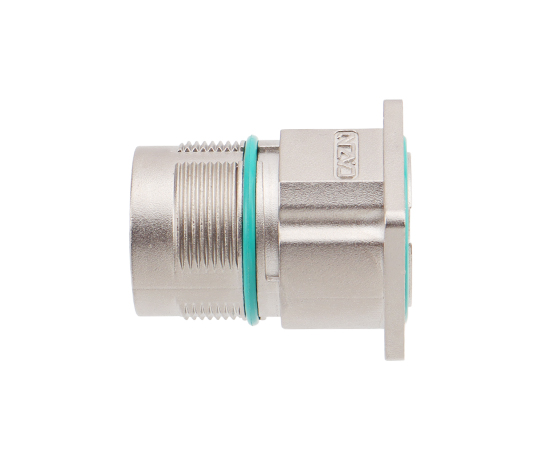

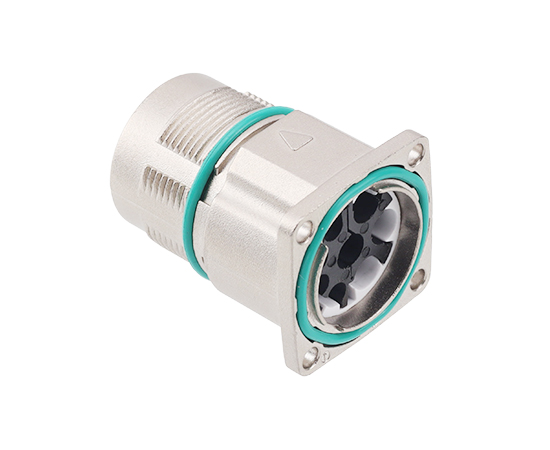

M923 Signal Straight Male Socket (Crimp, Mount hole 19.8x19.8)
MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated |
| Insulator material： | PBT/PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | 6~10mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
| Waterproof grade： | IP67 |

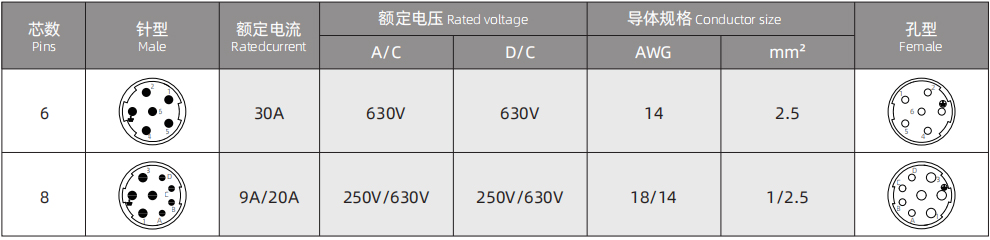

M923 POWER SUPPLY TYPE ELECTRICAL PARAMETERS
| Product Name | Part No. | Pins | 3D Download | 2D Download |
| Signal M923 Power Male Square Assembled Socket-Crimp-Mount hole 19.8x19.8-6Pin | M923-P6-GCH | 6 |
|
|
| Signal M923 Power Male Square Assembled Socket-Crimp-Mount hole 19.8x19.8-8Pin | M923-P8-GCH | 8 |
|
|
| Product catalog | CAZN-M Series products brochure |
| Certification/Report | EMC Certificate |
| RoHS Report | 查看 View |
| Waterproof test report | 查看 View |
DATASHEET

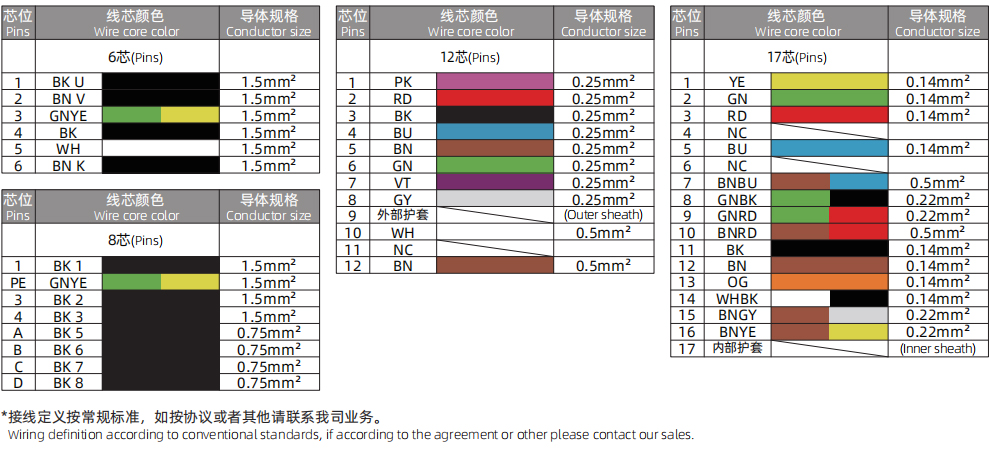

M623 WIRE DEFINITION
