MECHANICAL PARAMETERS
| Shell material： | Brass nickel-plated |
| Insulator material： | PBT/PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | 6~10mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
| Waterproof grade： | IP67 |
M623 SIGNAL TYPE ELECTRICAL PARAMETERS
Product Name | Part No.-(P Code) | Part No.-(E Code) | Pins | 3D Download | 2D Download |

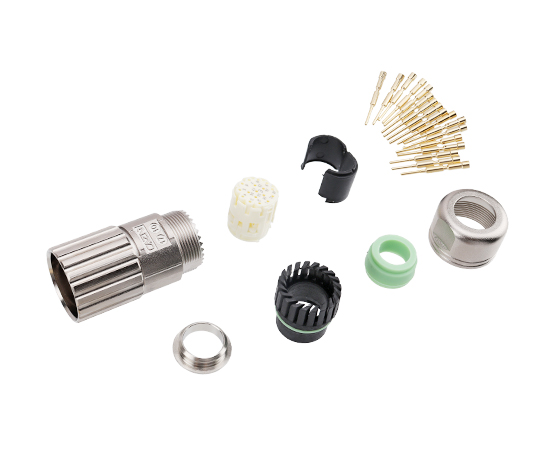

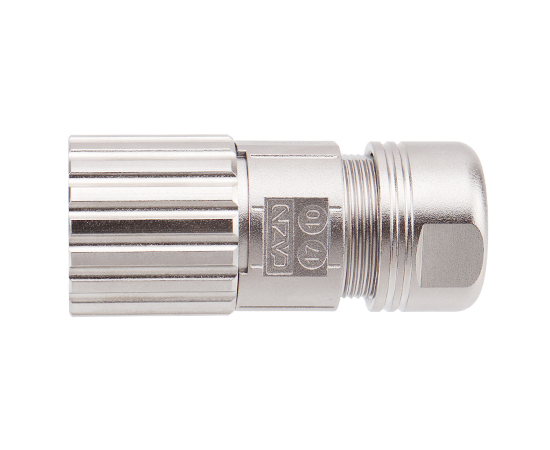

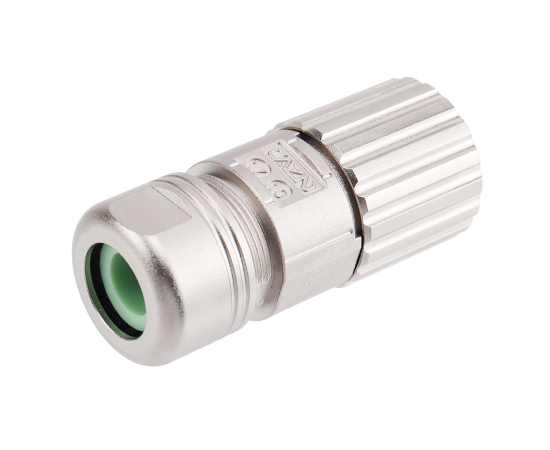

M623 Signal Straight Male Metal Assembled Plug-Crimp-6Pin | M623P-06PAM-GCP11 | M623E-06PAM-GCP11 | 6 | ||
M623 Signal Straight Male Metal Assembled Plug-Crimp-7Pin | M623P-07PAM-GCP11 | M623E-07PAM-GCP11 | 7 | ||
M623 Signal Straight Male Metal Assembled Plug-Crimp-9Pin | M623P-09PAM-GCP11 | M623E-09PAM-GCP11 | 9 | ||
M623 Signal Straight Male Metal Assembled Plug-Crimp-8+1Pin | M623P-09XPAM-GCP11 | M623E-09XPAM-GCP11 | 8+1 | ||
M623 Signal Straight Male Metal Assembled Plug-Crimp-12Pin | M623P-12PAM-GCP11 | M623E-12PAM-GCP11 | 12 | ||
M623 Signal Straight Male Metal Assembled Plug-Crimp-17Pin | M623P-17PAM-GCP11 | M623E-17PAM-GCP11 | 17 |
| Product catalog | CAZN-M Series products brochure |
| Certification/Report | EMC Certificate |
| RoHS Report | 查看 View |
| Waterproof test report | 查看 View |
DATASHEET
M623 WIRE DEFINITION
