MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |

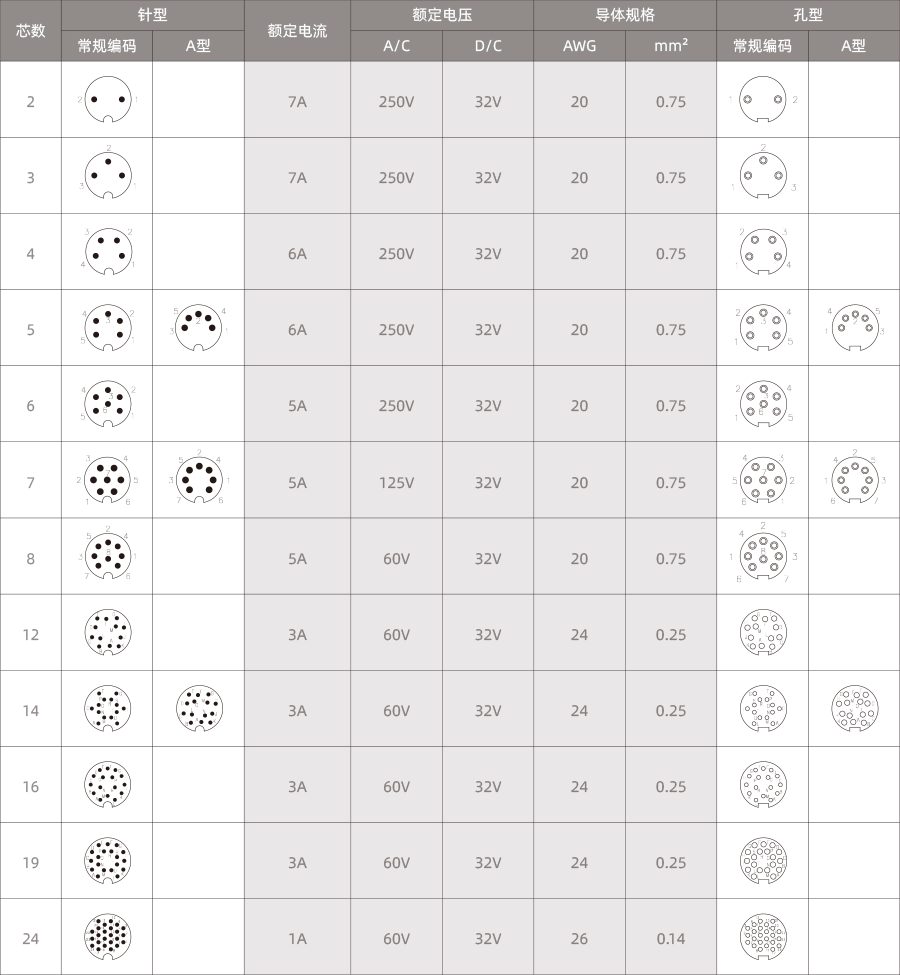

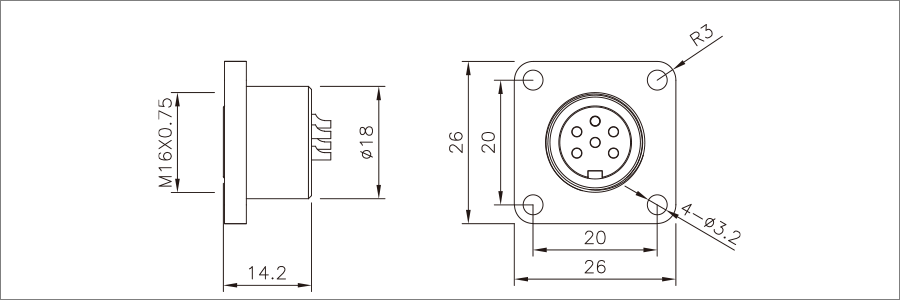

M16 ELECTRICAL PARAMETERS
Product name | Model | Pins | 3D Download | 2D Download |

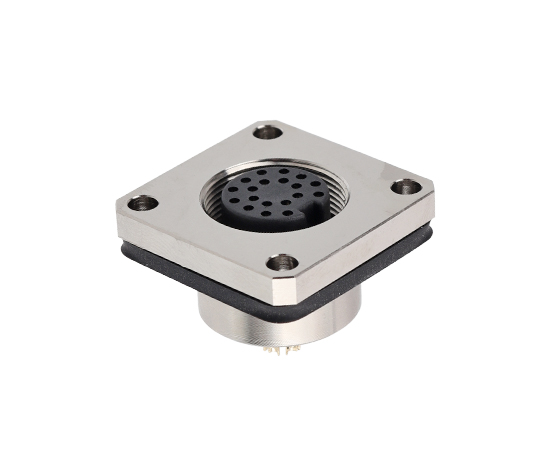

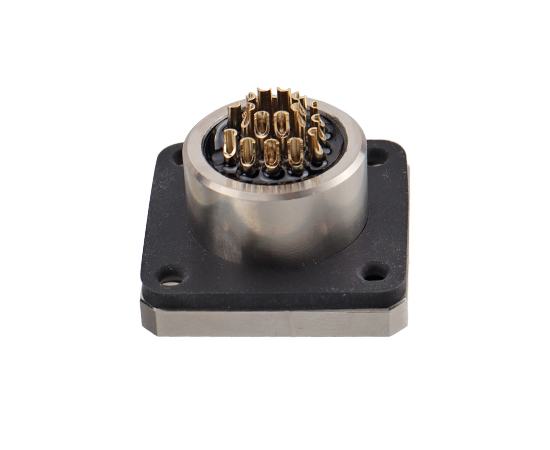

M16 Female Square Socket-Solder type-Mount Hole 20*20-2Pin | M16A-02PHF-GW18 | 2 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-3Pin | M16B-03PHF-GW18 | 3 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-4Pin | M16B-04PHF-GW18 | 4 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-5Pin | M16B-05PHF-GW18 | 5 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-6Pin | M16B-06PHF-GW18 | 6 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-7Pin | M16B-07PHF-GW18 | 7 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-8Pin | M16B-08PHF-GW18 | 8 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-12Pin | M16B-12PHF-GW18 | 12 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-14Pin | M16B-14PHF-GW18 | 14 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-16Pin | M16B-16PHF-GW18 | 16 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-19Pin | M16B-19PHF-GW18 | 19 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-24Pin | M16B-24PHF-GW18 | 24 | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-5Pin-A | M16A-05PHF-GW18 | 5A | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-7Pin-A | M16A-07PHF-GW18 | 7A | ||
M16 Female Square Socket-Solder type-Mount Hole 20*20-14Pin-A | M16A-14PHF-GW18 | 14A |
