MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |

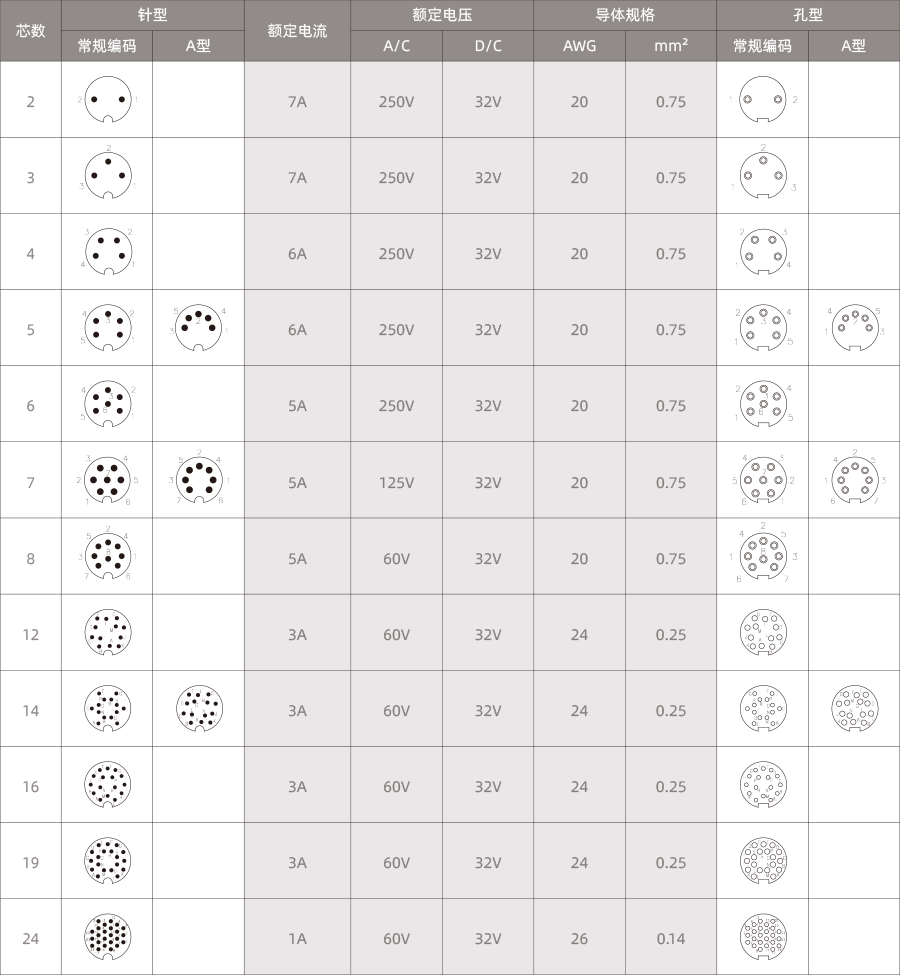

M16 ELECTRICAL PARAMETERS
Product name | Model | Pins | 3D Download | 2D Download |

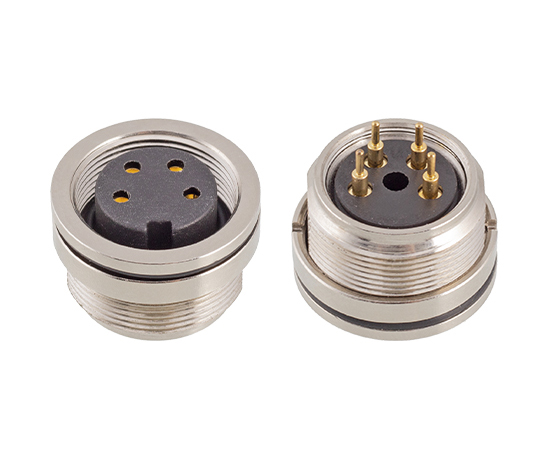

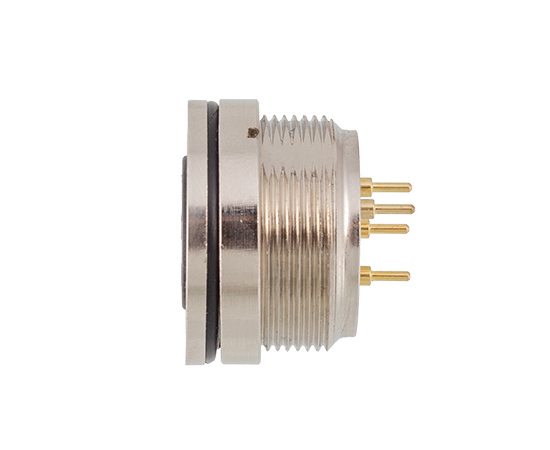

M16 Female Front Mount Socket - PCB -2Pin | M16A-02PBF-GP18 | 2 | ||
M16 Female Front Mount Socket - PCB -3Pin | M16B-03PBF-GP18 | 3 | ||
M16 Female Front Mount Socket - PCB -4Pin | M16B-04PBF-GP18 | 4 | ||
M16 Female Front Mount Socket - PCB -5Pin | M16B-05PBF-GP18 | 5 | ||
M16 Female Front Mount Socket - PCB -6Pin | M16B-06PBF-GP18 | 6 | ||
M16 Female Front Mount Socket - PCB -7Pin | M16B-07PBF-GP18 | 7 | ||
M16 Female Front Mount Socket - PCB -8Pin | M16B-08PBF-GP18 | 8 | ||
M16 Female Front Mount Socket - PCB -12Pin | M16B-12PBF-GP18 | 12 | ||
M16 Female Front Mount Socket - PCB -14Pin | M16B-14PBF-GP18 | 14 | ||
M16 Female Front Mount Socket - PCB -16Pin | M16B-16PBF-GP18 | 16 | ||
M16 Female Front Mount Socket - PCB -19Pin | M16B-19PBF-GP18 | 19 | ||
M16 Female Front Mount Socket - PCB -24Pin | M16B-24PBF-GP18 | 24 | ||
M16 Female Front Mount Socket - PCB -5Pin-A | M16A-05PBF-GP18 | 5A | ||
M16 Female Front Mount Socket - PCB -7Pin-A | M16A-07PBF-GP18 | 7A | ||
M16 Female Front Mount Socket - PCB -14Pin-A | M16A-14PBF-GP18 | 14A |
| Product Catalog | CAZN-M-SERIE-CONNECTOR |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DATASHEET

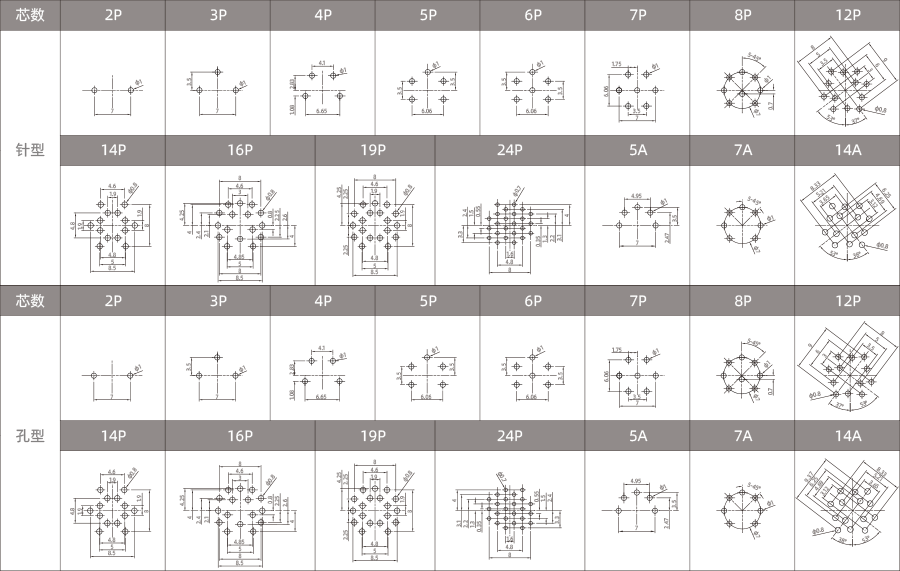

PCB PINS ARRANGEMENT
