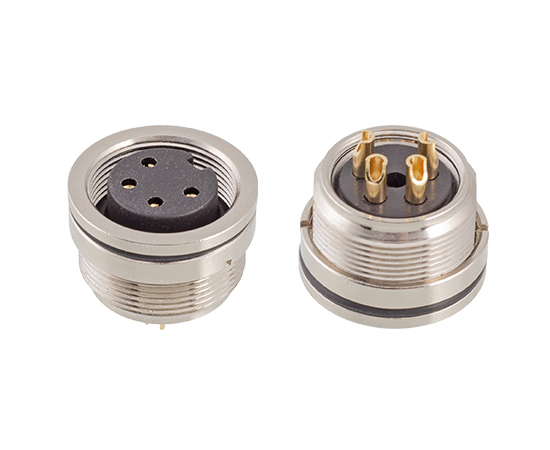

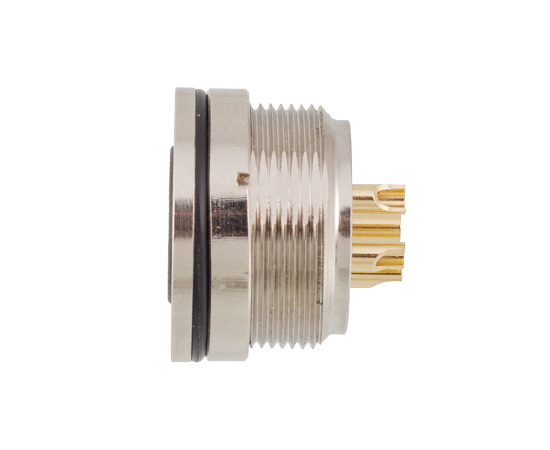

MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |

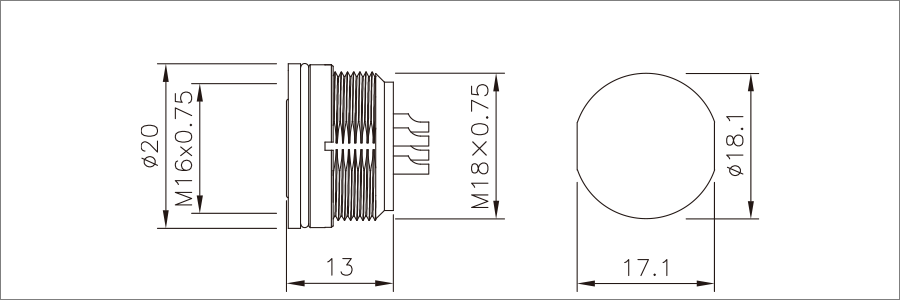

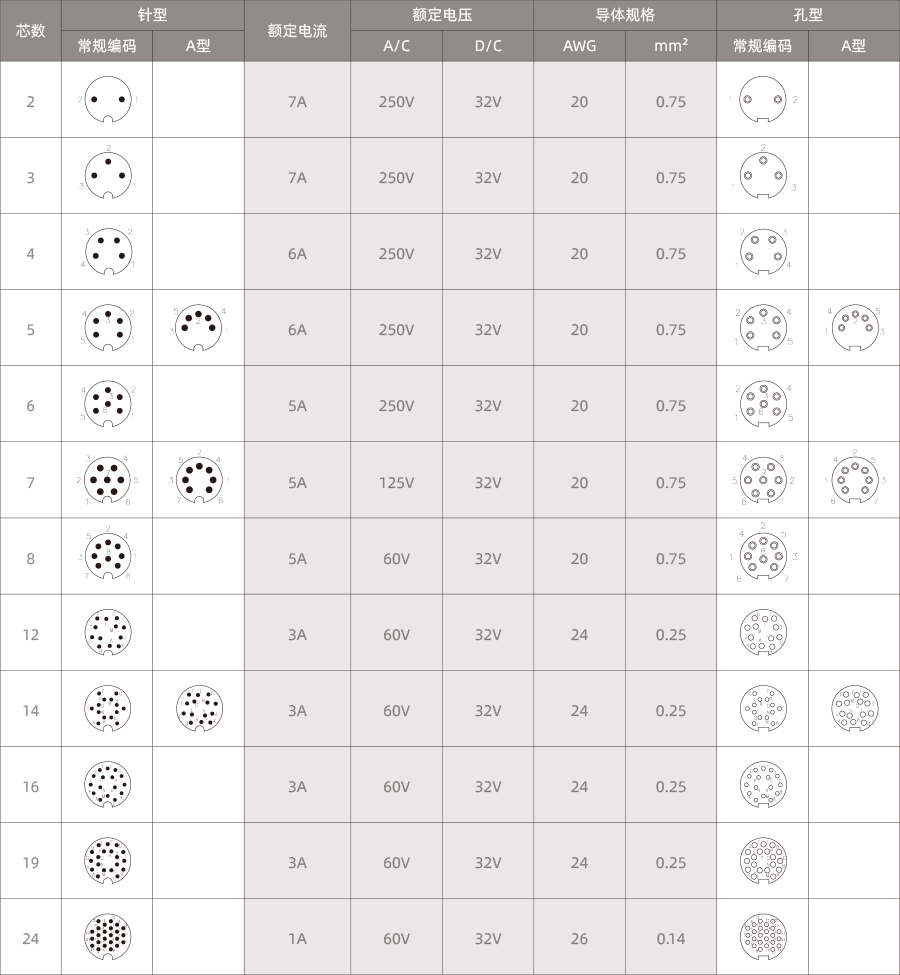

M16 ELECTRICAL PARAMETERS
Product name | Model | Pins | 3D Download | 2D Download |
M16 Female Front Mount Socket - Solder -2Pin | M16-S2-GWB M18 | 2 | ||
M16 Female Front Mount Socket - Solder -3Pin | M16-S3-GWB M18 | 3 | ||
M16 Female Front Mount Socket - Solder -4Pin | M16-S4-GWB M18 | 4 | ||
M16 Female Front Mount Socket - Solder -5Pin | M16-S5-GWB M18 | 5 | ||
M16 Female Front Mount Socket - Solder -6Pin | M16-S6-GWB M18 | 6 | ||
M16 Female Front Mount Socket - Solder -7Pin | M16-S7-GWB M18 | 7 | ||
M16 Female Front Mount Socket - Solder -8Pin | M16-S8-GWB M18 | 8 | ||
M16 Female Front Mount Socket - Solder -12Pin | M16-S12-GWB M18 | 12 | ||
M16 Female Front Mount Socket - Solder -14Pin | M16-S14-GWB M18 | 14 | ||
M16 Female Front Mount Socket - Solder -16Pin | M16-S16-GWB M18 | 16 | ||
M16 Female Front Mount Socket - Solder -19Pin | M16-S19-GWB M18 | 19 | ||
M16 Female Front Mount Socket - Solder -24Pin | M16-S24-GWB M18 | 24 | ||
M16 Female Front Mount Socket - Solder -5Pin-A | M16-S5A-GWB M18 | 5A | ||
M16 Female Front Mount Socket - Solder -7Pin-A | M16-S7A-GWB M18 | 7A | ||
M16 Female Front Mount Socket - Solder -14Pin-A | M16-S14A-GWB M18 | 14A |
