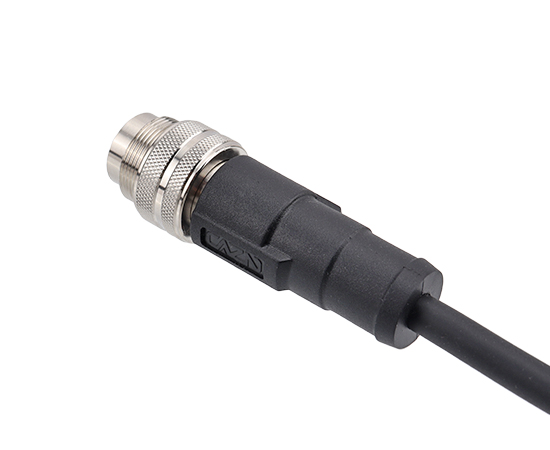

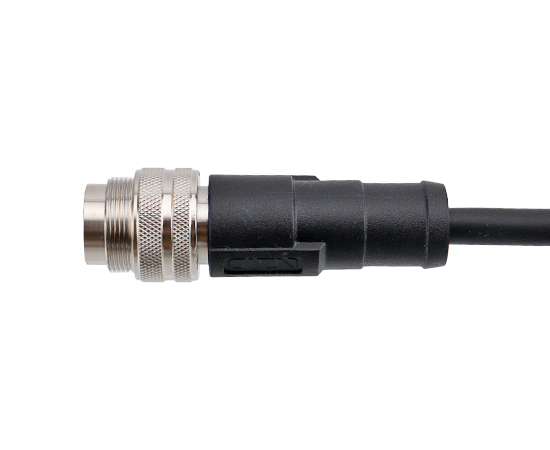

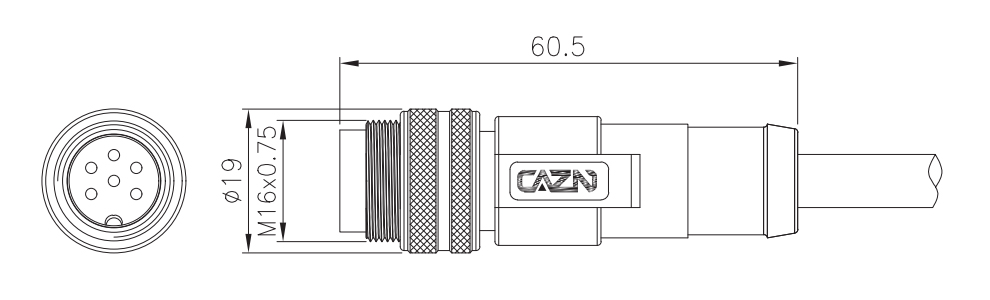

M16 Straight Male Overmolded Plug
MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |

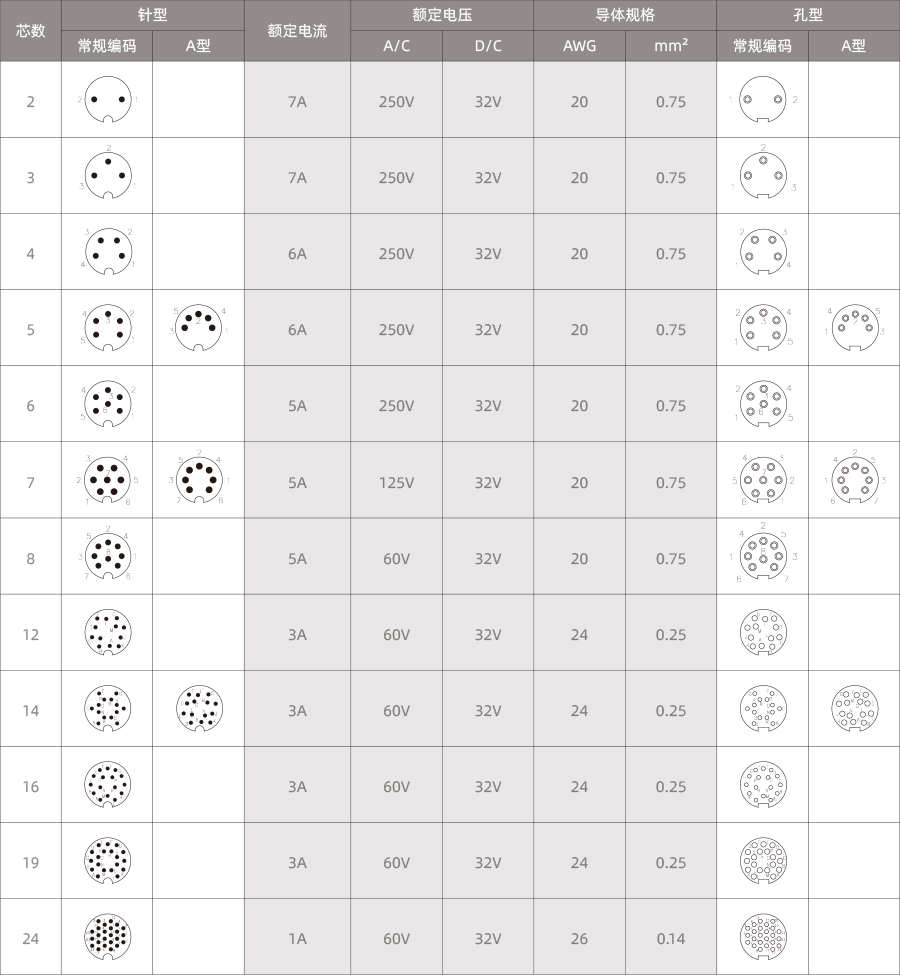

M16 ELECTRICAL PARAMETERS
| Product name | Model(Shielded) | Model(Unshielded) | Pins | 3D Download | 2D Download |
| M16 Straight Male Overmolded Plug-2Pins-xxM-PVC | M16-P2-MWA-xxPV-S | M16-P2-MWA-xxPV | 2 | Shielded/Unshielded | |
| M16 Straight Male Overmolded Plug-3Pins-xxM-PVC | M16-P3-MWA-xxPV-S | M16-P3-MWA-xxPV | 3 | ||
| M16 Straight Male Overmolded Plug-4Pins-xxM-PVC | M16-P4-MWA-xxPV-S | M16-P4-MWA-xxPV | 4 | ||
| M16 Straight Male Overmolded Plug-5Pins-xxM-PVC | M16-P5-MWA-xxPV-S | M16-P5-MWA-xxPV | 5 | ||
| M16 Straight Male Overmolded Plug-6Pins-xxM-PVC | M16-P6-MWA-xxPV-S | M16-P6-MWA-xxPV | 6 | ||
| M16 Straight Male Overmolded Plug-7Pins-xxM-PVC | M16-P7-MWA-xxPV-S | M16-P7-MWA-xxPV | 7 | ||
| M16 Straight Male Overmolded Plug-8Pins-xxM-PVC | M16-P8-MWA-xxPV-S | M16-P8-MWA-xxPV | 8 | ||
| M16 Straight Male Overmolded Plug-12Pins-xxM-PVC | M16-P12-MWA-xxPV-S | M16-P12-MWA-xxPV | 12 | ||
| M16 Straight Male Overmolded Plug-14Pins-xxM-PVC | M16-P14-MWA-xxPV-S | M16-P14-MWA-xxPV | 14 | ||
| M16 Straight Male Overmolded Plug-16Pins-xxM-PVC | M16-P16-MWA-xxPV-S | M16-P16-MWA-xxPV | 16 | ||
| M16 Straight Male Overmolded Plug-19Pins-xxM-PVC | M16-P19-MWA-xxPV-S | M16-P19-MWA-xxPV | 19 | ||
| M16 Straight Male Overmolded Plug-24Pins-xxM-PVC | M16-P24-MWA-xxPV-S | M16-P24-MWA-xxPV | 24 | ||
| M16 Straight Male Overmolded Plug-5APins-xxM-PVC | M16-P5A-MWA-xxPV-S | M16-P5A-MWA-xxPV | 5A | ||
| M16 Straight Male Overmolded Plug-7APins-xxM-PVC | M16-P7A-MWA-xxPV-S | M16-P7A-MWA-xxPV | 7A | ||
| M16 Straight Male Overmolded Plug-14APins-xxM-PVC | M16-P14A-MWA-xxPV-S | M16-P14A-MWA-xxPV | 14A |
*If you need to choose other wire, please consult customer service
| Product Catalog | CAZN-M-SERIE-CONNECTOR |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DATASHEET
