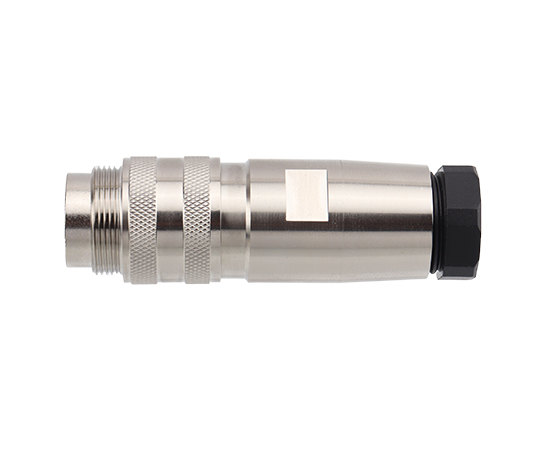

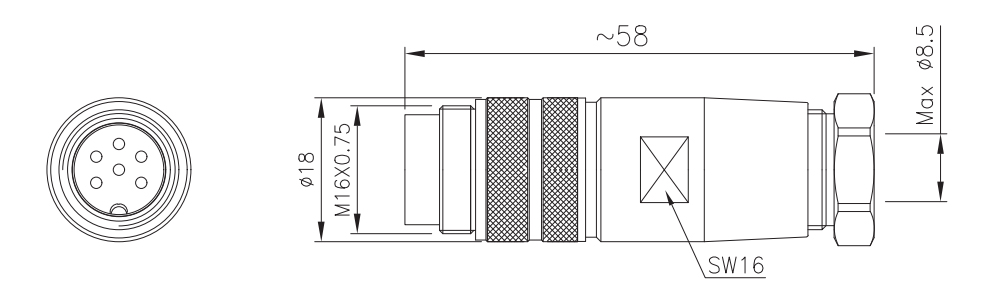

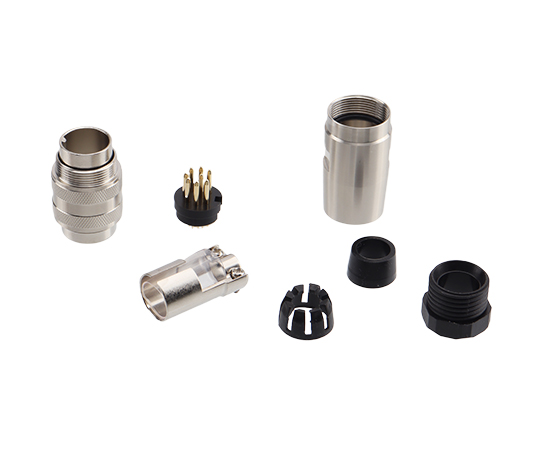

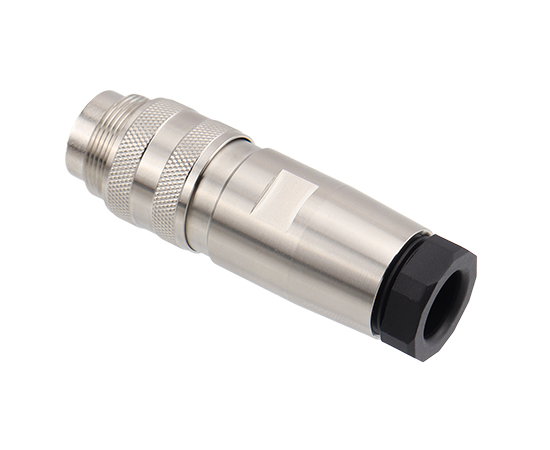

M16 Straight Male Metal Assembled Plug (Solder)
MECHANICAL PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | TPU/PVC |
| Wiring range： | PG7:4~6mm; PG9:6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Implementation standards： | IEC 61076-2-106-2012 |

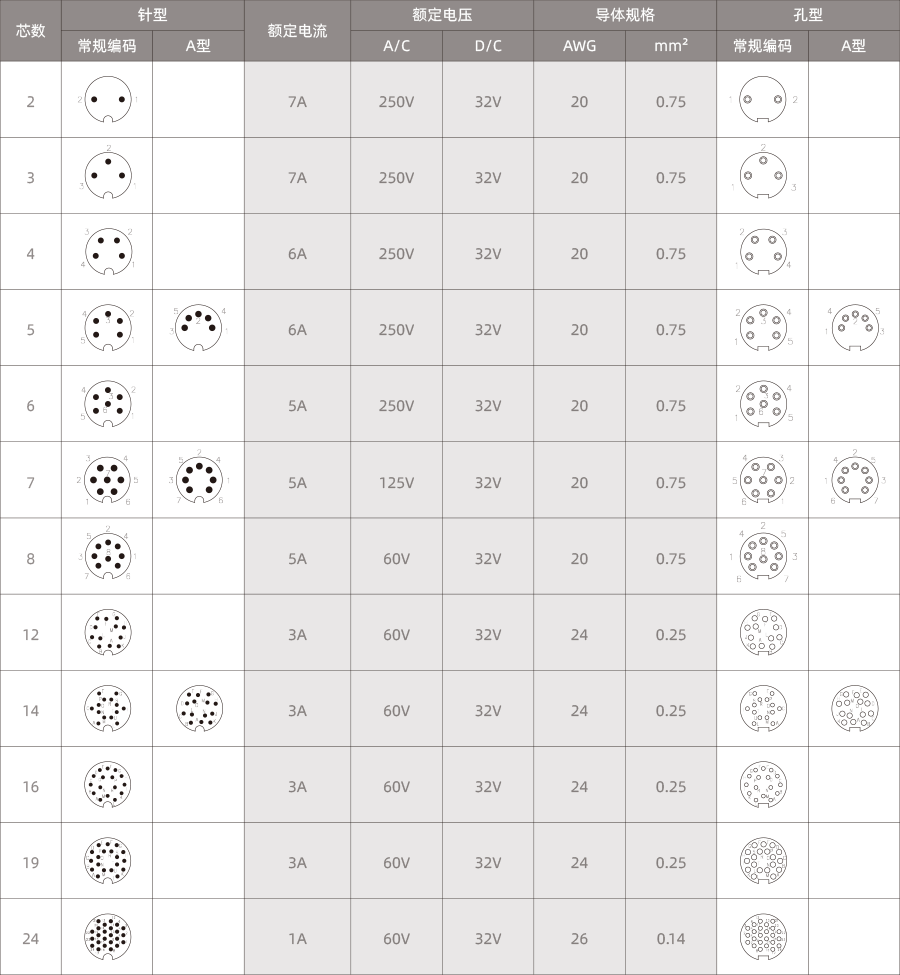

Electrical parameters
| Product name | Outlet size-PG7 | Outlet size-PG9 | Pins | 3D Download | 2D Download |
| M16 Straight Male Metal Assembled Plug (Solder)-2Pin | M16B-02PAM-GWP7-PL | M16B-02PAM-GWP9-PL | 2 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-3Pin | M16B-03PAM-GWP7-PL | M16B-03PAM-GWP9-PL | 3 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-4Pin | M16B-04PAM-GWP7-PL | M16B-04PAM-GWP9-PL | 4 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-5Pin | M16B-05PAM-GWP7-PL | M16B-05PAM-GWP9-PL | 5 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-6Pin | M16B-06PAM-GWP7-PL | M16B-06PAM-GWP9-PL | 6 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-7Pin | M16B-07PAM-GWP7-PL | M16B-07PAM-GWP9-PL | 7 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-8Pin | M16B-08PAM-GWP7-PL | M16B-08PAM-GWP9-PL | 8 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-12Pin | M16B-12PAM-GWP7-PL | M16B-12PAM-GWP9-PL | 12 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-14Pin | M16B-14PAM-GWP7-PL | M16B-14PAM-GWP9-PL | 14 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-16Pin | M16B-16PAM-GWP7-PL | M16B-16PAM-GWP9-PL | 16 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-19Pin | M16B-19PAM-GWP7-PL | M16B-19PAM-GWP9-PL | 19 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-24Pin | M16B-24PAM-GWP7-PL | M16B-24PAM-GWP9-PL | 24 | ||
| M16 Straight Male Metal Assembled Plug (Solder)-5Pin-A | M16A-05PAM-GWP7-PL | M16A-05PAM-GWP9-PL | 5A | ||
| M16 Straight Male Metal Assembled Plug (Solder)-7Pin-A | M16A-07PAM-GWP7-PL | M16A-07PAM-GWP9-PL | 7A | ||
| M16 Straight Male Metal Assembled Plug (Solder)-14Pin-A | M16A-14PAM-GWP7-PL | M16A-14PAM-GWP9-PL | 14A |
| Product Catalog | CAZN-M-SERIE-CONNECTOR |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
DATASHEET
