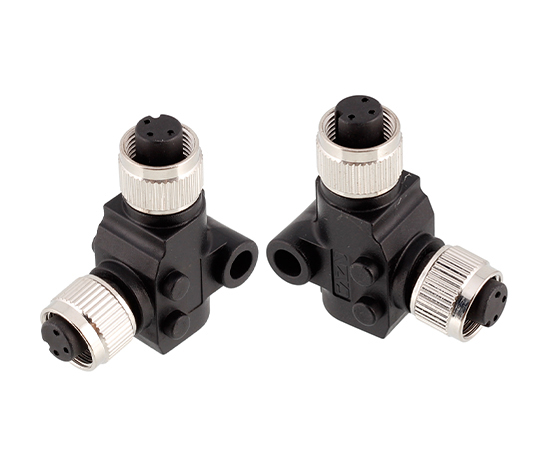

M12 L-Type Adapter (SS)
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |

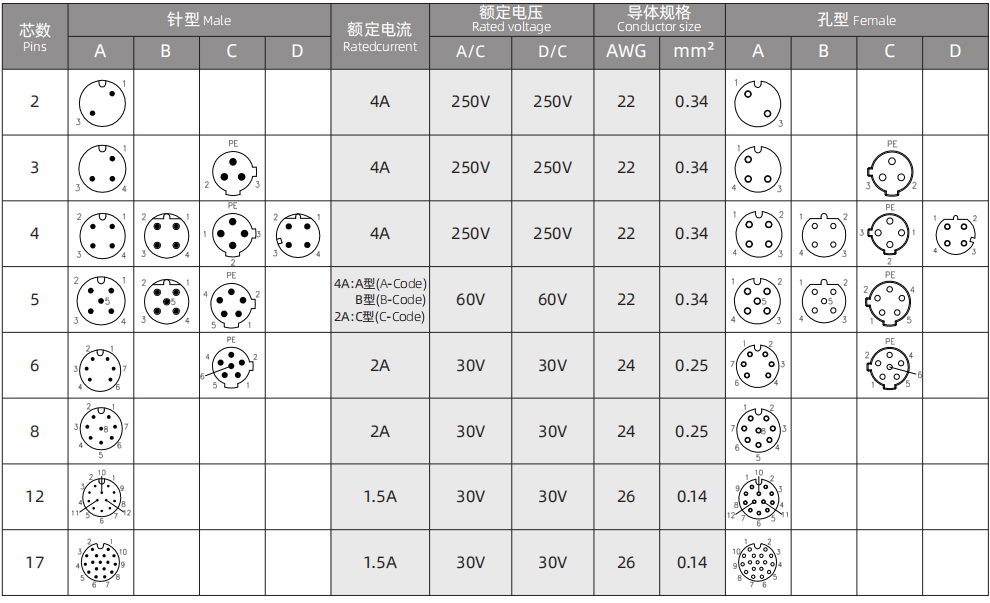

Electrical paramete
| Product name | Models | 3D Download | 2D Download |
| M12 L-Type Adapter (SS) | M12A-02PM/M12A-02PF-L | ||
| M12 L-Type Adapter (SS) | M12A-03PM/M12A-03PF-L | ||
| M12 L-Type Adapter (SS) | M12A-04PM/M12A-04PF-L | ||
| M12 L-Type Adapter (SS) | M12D-04PM/M12D-04PF-L | ||
| M12 L-Type Adapter (SS) | M12A-05PM/M12A-05PF-L | ||
| M12 L-Type Adapter (SS) | M12B-05PM/M12B-05F-L | ||
| M12 L-Type Adapter (SS) | M12A-06PM/M12A-06PF-L | ||
| M12 L-Type Adapter (SS) | M12A-08PM/M12A-08PF-L |
Dimension
Wiring Definition
