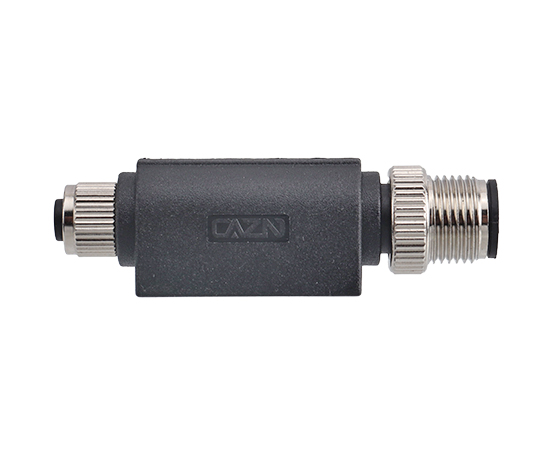

M12 I-Type Adapter (M12-M8, PS, Plastic style)
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical paramete
| Product name | Models | 3D Download | 2D Download |
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12A-02PM/M8A-02PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12A-03PM/M8A-03PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12A-04PM/M8A-04PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12A-05PM/M8A-05PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12A-06PM/M8A-06PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12A-08PM/M8A-08PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12A-12PM/M8A-12PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12B-05PM/M8B-05PF-I | ||
| M12 I-Type Adapter (M12-M8, PS, Plastic style) | M12D-04PM/M8D-04PF-I |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

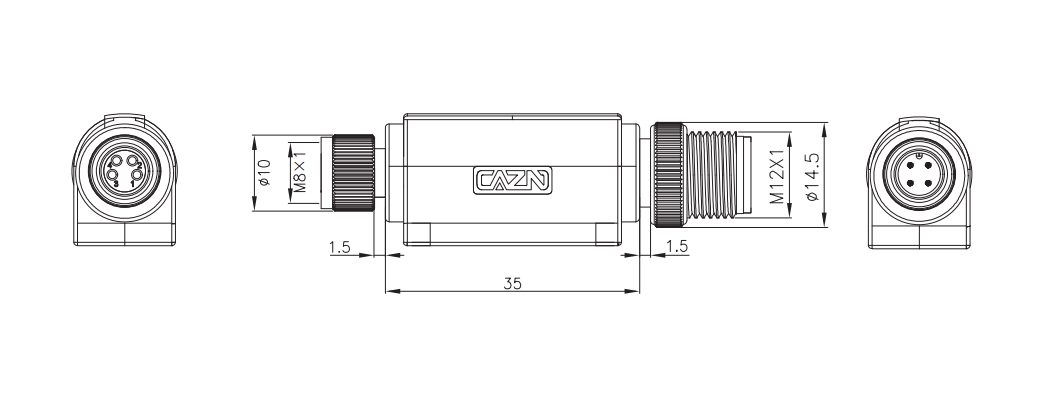

Dimension

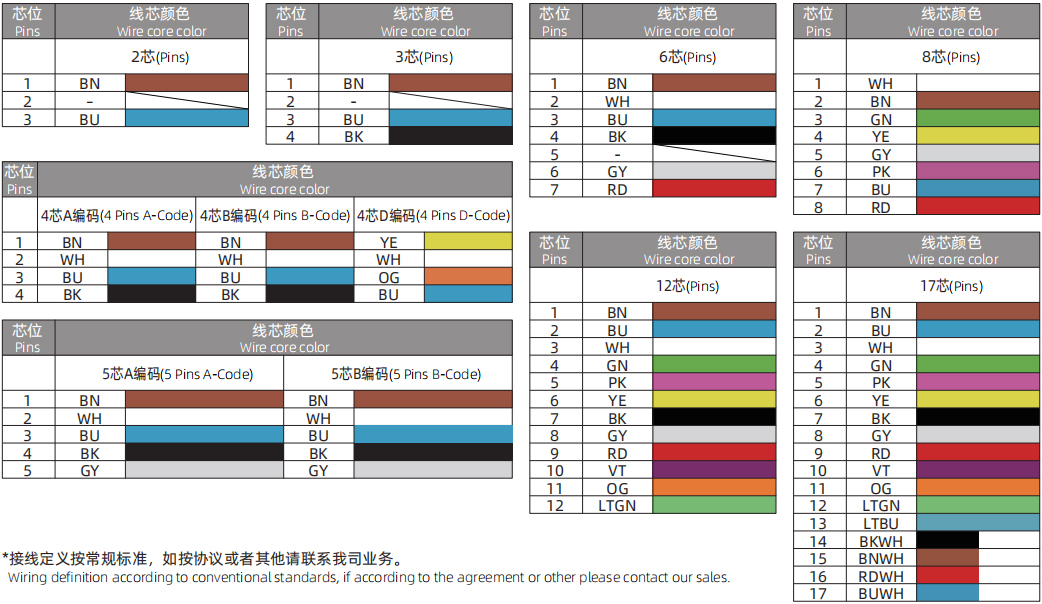

Wiring Definition
