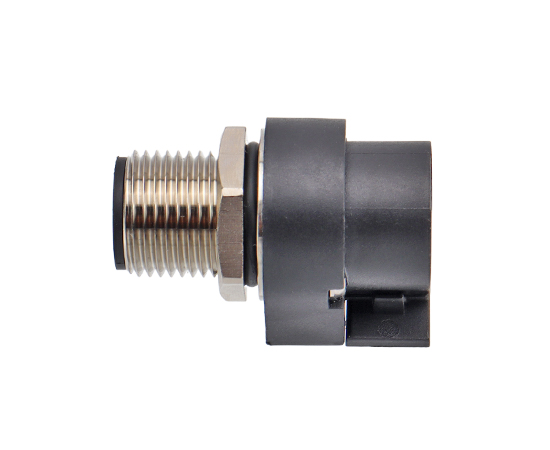

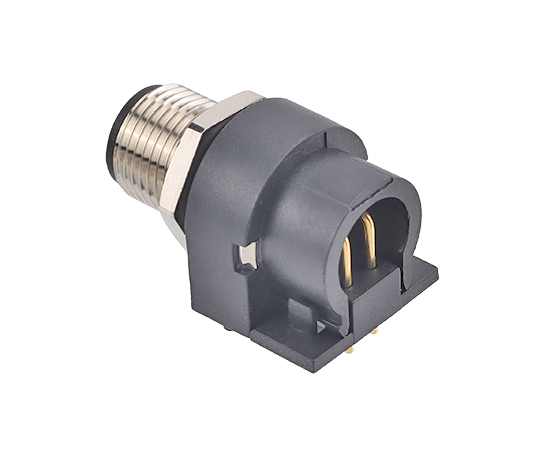

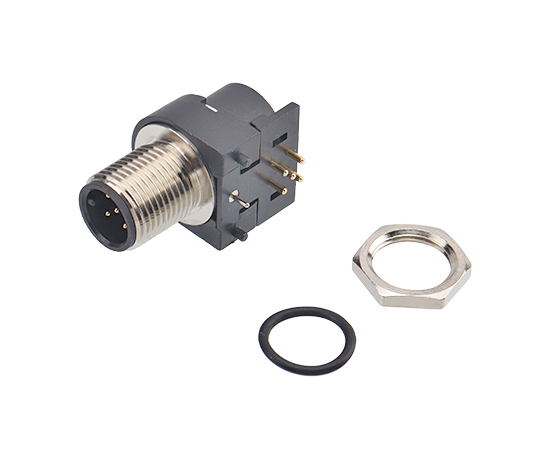

M12 Curved Needle Socket (PCB, Screw M12*1, Big volume)
Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
| Product Name | Pins | Model | 3D Download | 2D Download |
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 2A | M12A-02PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 3A | M12A-03PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 4A | M12A-04PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 5A | M12A-05PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 6A | M12A-06PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 8A | M12A-08PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 12A | M12A-12PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 17A | M12A-17PLM-GP-BD | ||
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 5B | M12B-05PLM-GP-BD |
|
|
| M12 Curved Hole Socket (PCB, Screw M12*1, Big volume) | 4D | M12D-04PLM-GP-BD |
|
|
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

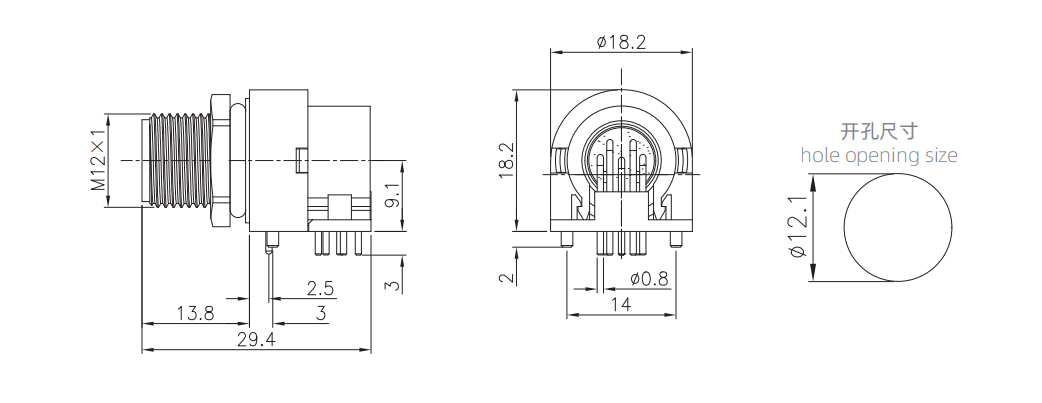

Dimension

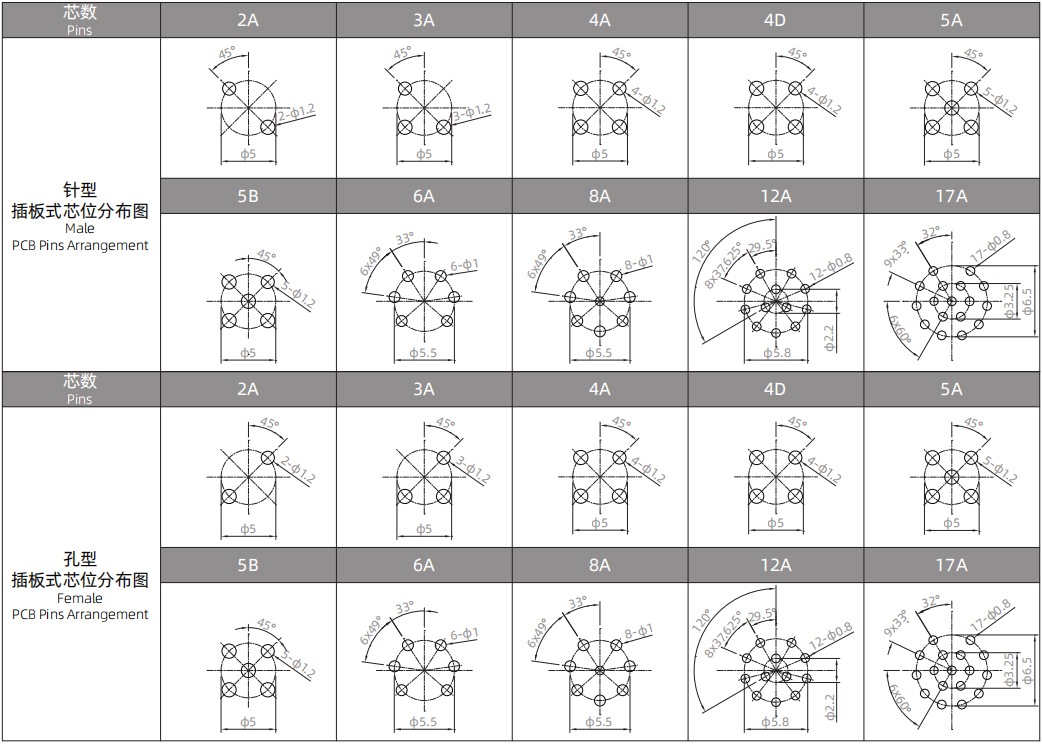

PCB pin bitmap

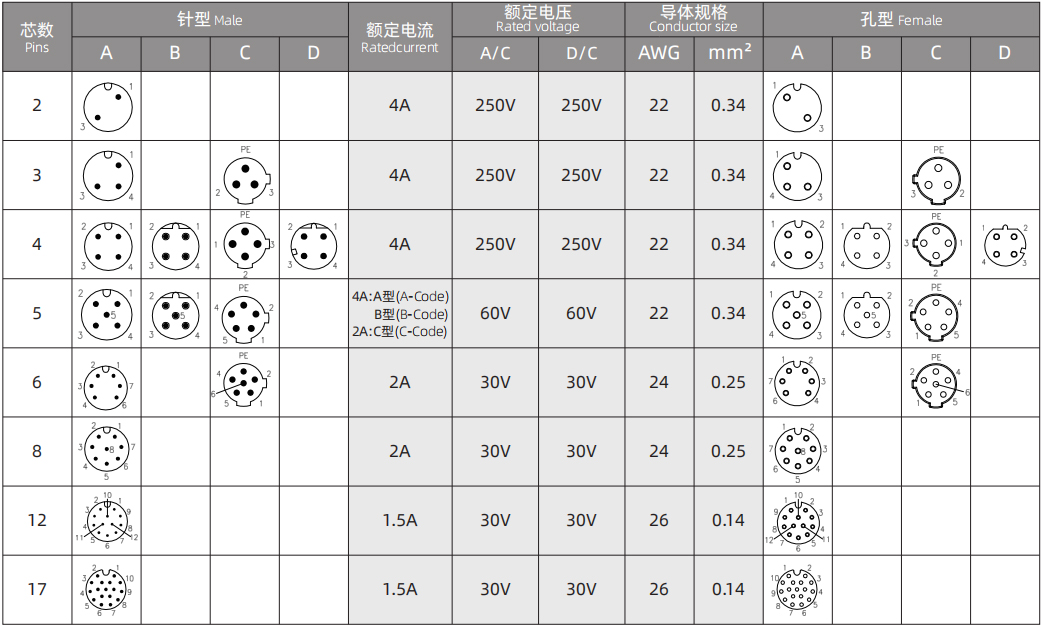

Wiring Definition
