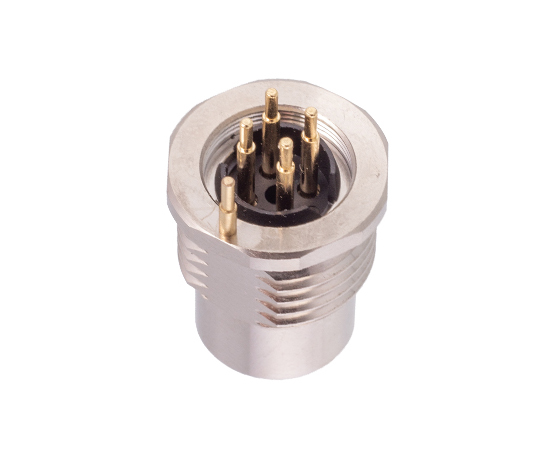

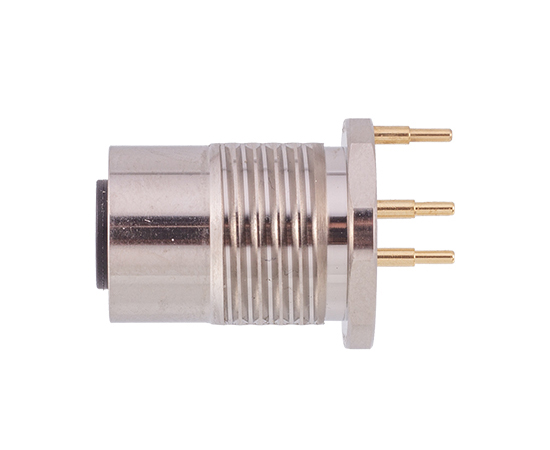

M12 Female Back Mount Socket (PCB, Grounded type)

European standard connector M12 series

Structure type: back mount socket

Pin type: female type

Contacts number: 2,3,4,5,6,8,12,17pins

Connection method: PCB

Shield: Yes

Certification: CE RoHS

Standard: IEC 61076-2-101

PDF Download

Shopping

Technical Parameter

Shell material	brass nickel plating/zinc alloy nickel/PA+GF
Insulator material	PA+GF/TPU
Sealing material	epoxy resin/rubber
Contact material	brass /phosphorus copper gold-plated
Molding material	TPU/PVC
Insulation impedance	≥ 100 M Ω
Contact impedance	≤ 5 m Ω
Durability	≥ 500 cycles
Applicable temperature	-25 ℃~+80 ℃
Waterproof	IP65/IP67
Executive standard	IEC 61076-2-101

Electrical parameter


Product name	Pins	*Part No.(Screw M161.5)**	Part No.(Screw PG9)	3D Download	2D Download
M12 Female Back Mount Socket (PCB, Grounded type)	2A	M12A-02PFF-GP16-JD	M12A-02PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	3A	M12A-03PFF-GP16-JD	M12A-03PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	4A	M12A-04PFF-GP16-JD	M12A-04PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	5A	M12A-05PFF-GP16-JD	M12A-05PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	6A	M12A-06PFF-GP16-JD	M12A-06PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	8A	M12A-08PFF-GP16-JD	M12A-08PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	12A	M12A-12PFF-GP16-JD	M12A-12PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	17A	M12A-17PFF-GP16-JD	M12A-17PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	5B	M12B-05PFF-GP16-JD	M12B-05PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	3C	M12C-03PFF-GP16-JD	M12C-03PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	4C	M12C-04PFF-GP16-JD	M12C-04PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	5C	M12C-05PFF-GP16-JD	M12C-05PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	6C	M12C-06PFF-GP16-JD	M12C-06PFF-GPP9-JD	M16/PG9	M16/PG9
M12 Female Back Mount Socket (PCB, Grounded type)	4D	M12D-04PFF-GP16-JD	M12D-04PFF-GPP9-JD	M16/PG9	M16/PG9
