Technical Parameter
Shell material | brass nickel plating/zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | epoxy resin/rubber |
Contact material | brass /phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 M Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Cut-Out Size-M16 | Cut-Out Size-PG9 | 3D Download | 2D Download |

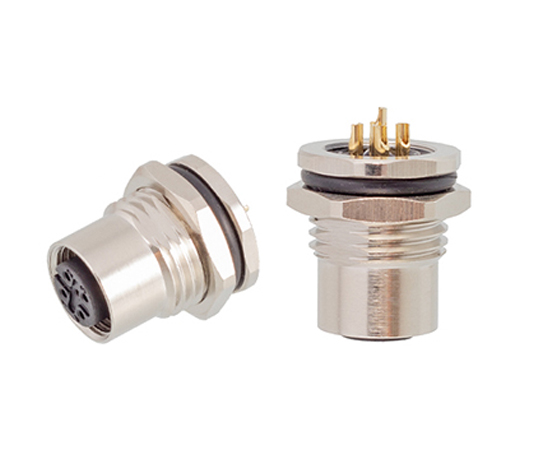

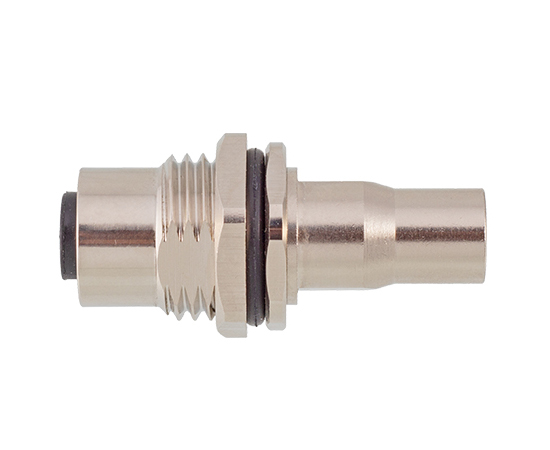

M12 female back mount socket 2A solder screw M16*1.5/PG9 Shielded | M12A-02PFF-GW16-PB | |||
M12 female back mount socket 3A solder screw M16*1.5/PG9 Shielded | M12A-03PFF-GW16-PB | |||
M12 female back mount socket 3C solder screw M16*1.5/PG9 Shielded | M12C-03PFF-GW16-PB | |||
M12 female back mount socket 4A solder screw M16*1.5/PG9 Shielded | M12A-04PFF-GW16-PB | |||
M12 female back mount socket 4D solder screw M16*1.5/PG9 Shielded | M12D-04PFF-GW16-PB | |||
M12 female back mount socket 4C solder screw M16*1.5/PG9 Shielded | M12C-04PFF-GW16-PB | |||
M12 female back mount socket 5A solder screw M16*1.5/PG9 Shielded | M12A-05PFF-GW16-PB | |||
M12 female back mount socket 5B solder screw M16*1.5/PG9 Shielded | M12B-05PFF-GW16-PB | |||
M12 female back mount socket 5C solder screw M16*1.5/PG9 Shielded | M12C-05PFF-GW16-PB | |||
M12 female back mount socket 6A solder screw M16*1.5/PG9 Shielded | M12A-06PFF-GW16-PB | |||
M12 female back mount socket 6C solder screw M16*1.5/PG9 Shielded | M12C-06PFF-GW16-PB | |||
M12 female back mount socket 8A solder screw M16*1.5/PG9 Shielded | M12A-08PFF-GW16-PB | |||
M12 female back mount socket 12A solder screw M16*1.5/PG9 Shielded | M12A-12PFF-GW16-PB | |||
M12 female back mount socket 17A solder screw M16*1.5/PG9 Shielded | M12A-17PFF-GW16-PB |
Dimension
Wiring Definition
