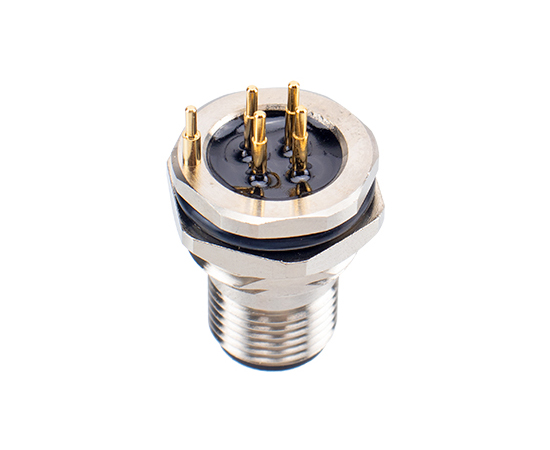

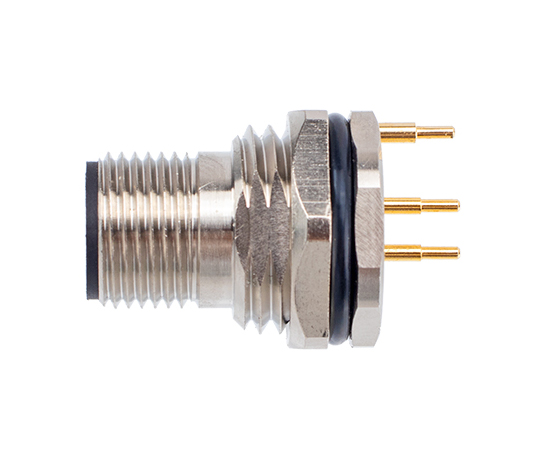

M12 Male Back Mount Socket (PCB, Grounded type)
TECHNICAL PARAMETER
| Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material | PA+GF/TPU |
| Sealing material | Epoxy resin / Rubber |
| Contact material | Brass / Phosphorus copper gold-plated |
| Molding material | TPU/PVC |
| Insulation impedance | ≥ 100 MΩ |
| Contact impedance | ≤ 5 mΩ |
| Durability | ≥ 500 Cycles |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65/IP67 |
| Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETER
| Product name | Pins | Part No.(Screw M16*1.5) | Part No.(Screw PG9) | 3D Download | 2D Download |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 2A | M12A-02PFM-GP16-JD | M12A-02PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 3A | M12A-03PFM-GP16-JD | M12A-03PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 4A | M12A-04PFM-GP16-JD | M12A-04PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 5A | M12A-05PFM-GP16-JD | M12A-05PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 6A | M12A-06PFM-GP16-JD | M12A-06PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 8A | M12A-08PFM-GP16-JD | M12A-08PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 12A | M12A-12PFM-GP16-JD | M12A-12PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 17A | M12A-17PFM-GP16-JD | M12A-17PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 5B | M12B-05PFM-GP16-JD | M12B-05PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 3C | M12C-03PFM-GP16-JD | M12C-03PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 4C | M12C-04PFM-GP16-JD | M12C-04PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 5C | M12C-05PFM-GP16-JD | M12C-05PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 6C | M12C-06PFM-GP16-JD | M12C-06PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| M12 Male Back Mount Socket (PCB, Grounded type,Big screw) | 4D | M12D-04PFM-GP16-JD | M12D-04PFM-GPP9-JD | M16/PG9 | M16/PG9 |
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |
