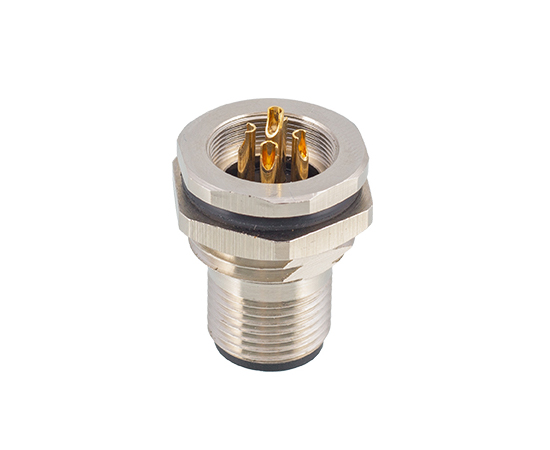

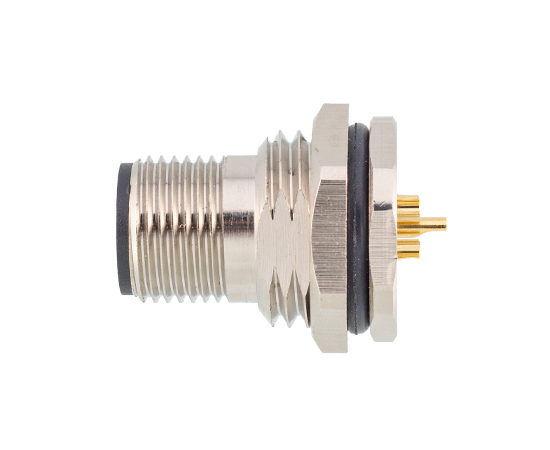

M12 Male Back Mount Socket Solder Screw M16*1.5/PG9

European standard connector M12 series

Structure type: back mount socket

Pin type: male type

Contacts number: 2,3,4,5,6,8,12,17pins

Connection method: solder

Shield: No

Certification: CE RoHS

Standard: IEC 61076-2-101

Shopping

TECHNICAL PARAMETER

Shell material	Brass nickel plating / Zinc alloy nickel / PA+GF
Insulator material	PA+GF / TPU
Sealing material	Epoxy resin / Rubber
Contact material	Brass / Phosphorus copper gold-plated
Molding material	TPU / PVC
Insulation impedance	≥ 100 MΩ
Contact impedance	≤ 5 mΩ
Durability	≥ 500 Cycles
Applicable temperature	-25℃ ~ +80℃
Waterproof	IP65 / IP67
Executive standard	IEC 61076-2-101

ELECTRICAL PARAMETER


Product name	Contacts number	*Cut-Out Size-M161.5**	Cut-Out Size-PG9	3D Download	2D Download
M12 male back mount socket solder	2A	M12-S2A-GWFM16-xPV	M12-S2A-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	3A	M12-S3A-GWFM16-xPV	M12-S3A-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	3C	M12-S3C-GWFM16-xPV	M12-S3C-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	4A	M12-S4A-GWFM16-xPV	M12-S4A-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	4D	M12-S4D-GWFM16-xPV	M12-S4D-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	4C	M12-S4C-GWFM16-xPV	M12-S4C-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	5A	M12-S5A-GWFM16-xPV	M12-S5A-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	5B	M12-S5B-GWFM16-xPV	M12-S5B-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	5C	M12-S5C-GWFM16-xPV	M12-S5C-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	6A	M12-S6A-GWFM16-xPV	M12-S6A-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	6B	M12-S6B-GWFM16-xPV	M12-S6B-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	6C	M12-S6C-GWFM16-xPV	M12-S6C-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	8A	M12-S8A-GWFM16-xPV	M12-S8A-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	12A	M12-S12A-GWFM16-xPV	M12-S12A-GWFPG9-xPV	↓	↓
M12 male back mount socket solder	17A	M12-S17A-GWFM16-xPV	M12-S17A-GWFPG9-xPV	↓	↓
