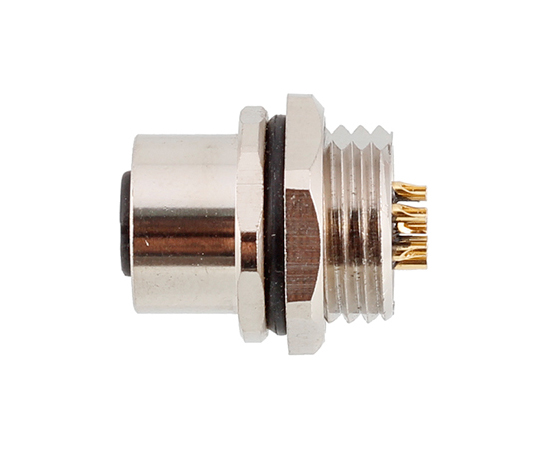

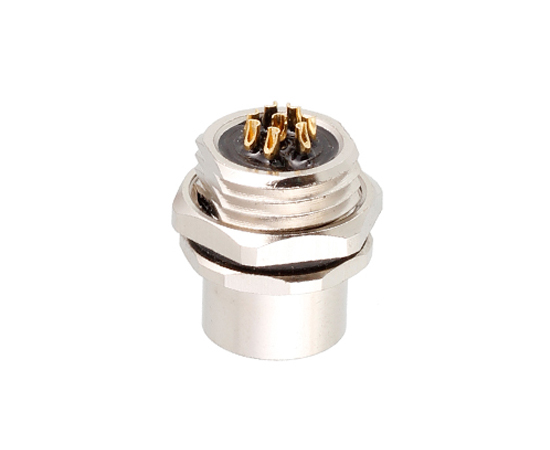

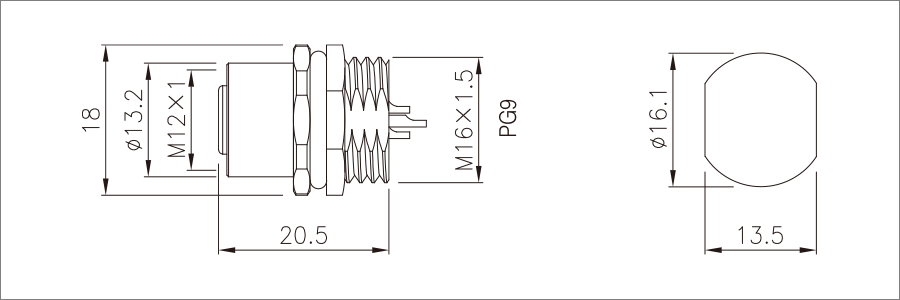

M12 Female Front Mount Socket Solder Screw M16*1.5/PG9

European standard connector M12 series

Structure type: Front mount socket

Pin type: Female type

Contacts number: 2,3,4,5,6,8,12,17 Pins

Connection method: Solder

Shield: No

Certification: CE RoHS

Standard: IEC 61076-2-101

Shopping

TECHNICAL PARAMETER

Shell material	Brass nickel plating / Zinc alloy nickel / PA+GF
Insulator material	PA+GF / TPU
Sealing material	Epoxy resin / Rubber
Contact material	Brass / Phosphorus copper gold-plated
Molding material	TPU / PVC
Insulation impedance	≥ 100 MΩ
Contact impedance	≤ 5 mΩ
Durability	≥ 500 Cycles
Applicable temperature	-25℃ ~ +80℃
Waterproof	IP65 / IP67
Executive standard	IEC 61076-2-101

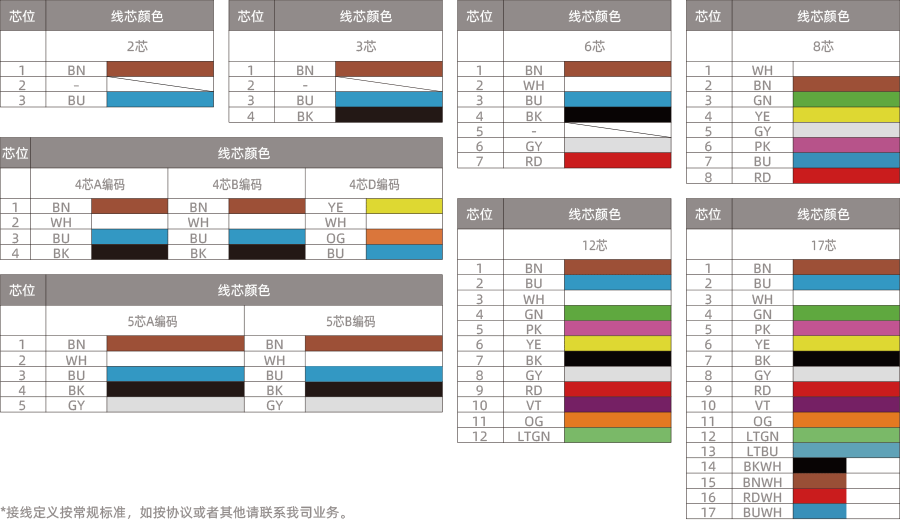

ELECTRICAL PARAMETER

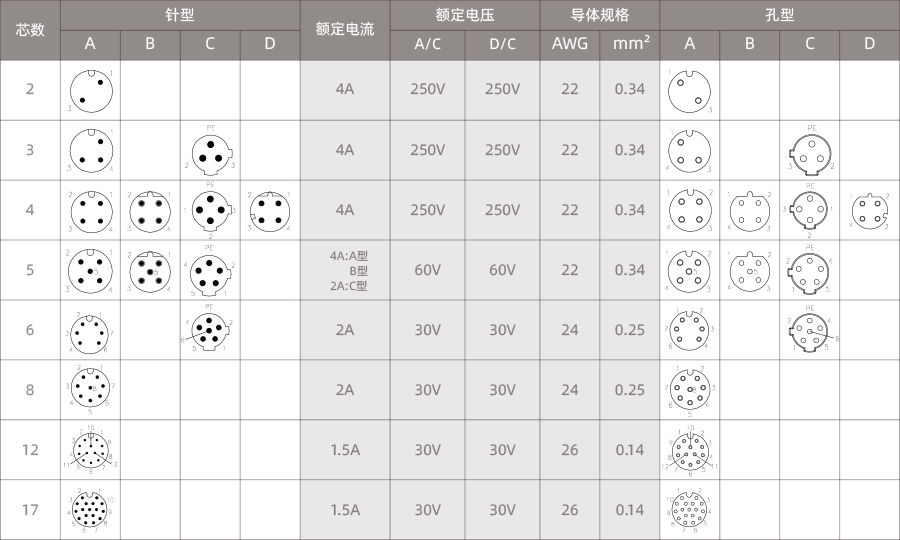

Product Name	Pins	Outlet Size-PG9	Outlet Size-M16x1.5	3D Download	2D Download
M12 Female Front Mount Socket (Solder)	2A	M12A-02PBF-GWP9	M12A-02PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	3A	M12A-03PBF-GWP9	M12A-03PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	3C	M12C-03PBF-GWP9	M12C-03PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	4A	M12A-04PBF-GWP9	M12A-04PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	4D	M12D-04PBF-GWP9	M12D-04PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	4C	M12C-04PBF-GWP9	M12C-04PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	5A	M12A-05PBF-GWP9	M12A-05PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	5B	M12B-05PBF-GWP9	M12B-05PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	5C	M12C-05PBF-GWP9	M12C-05PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	6A	M12A-06PBF-GWP9	M12A-06PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	6C	M12C-06PBF-GWP9	M12C-06PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	8A	M12A-08PBF-GWP9	M12A-08PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	12A	M12A-12PBF-GWP9	M12A-12PBF-GW16	M16/PG9	M16/PG9
M12 Female Front Mount Socket (Solder)	17A	M12A-17PBF-GWP9	M12A-17PBF-GW16	M16/PG9	M16/PG9
