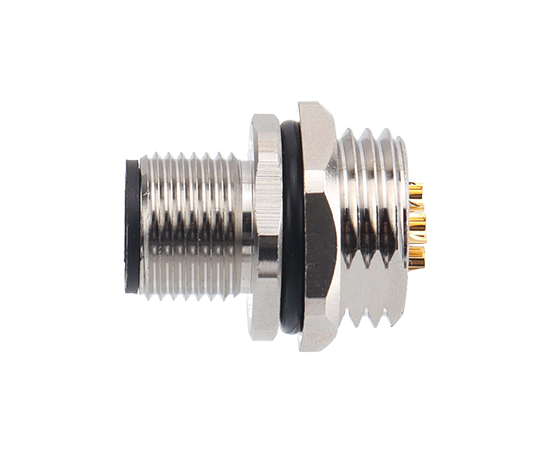

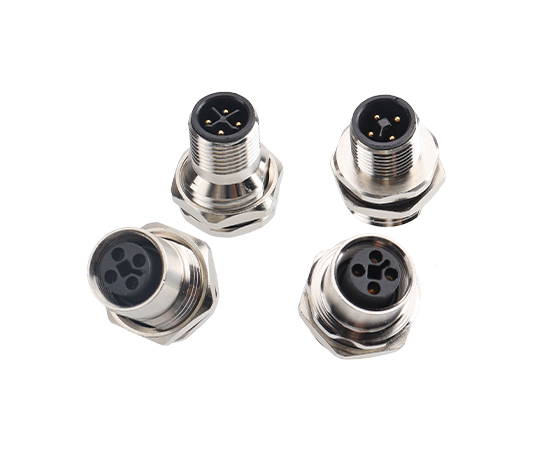

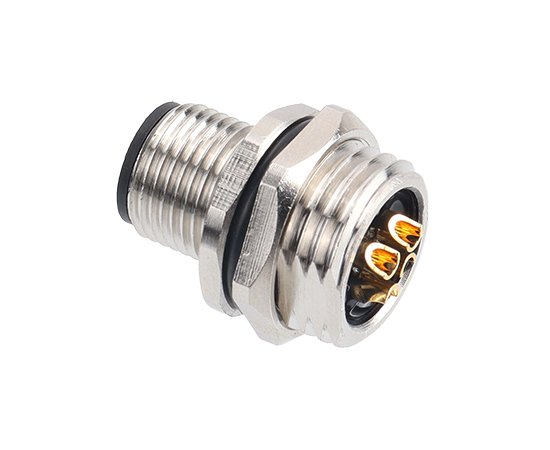

Technical Parameter
Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
Insulator material | PA+GF/TPU |
Sealing material | Epoxy resin/Rubber |
Contact material | Brass /Phosphorus copper gold-plated |
Molding material | TPU/PVC |
Insulation impedance | ≥ 100 m Ω |
Contact impedance | ≤ 5 m Ω |
Durability | ≥ 500 cycles |
Applicable temperature | -25 ℃~+80 ℃ |
Waterproof | IP65/IP67 |
Executive standard | IEC 61076-2-101 |
Electrical parameter
Product name | Outlet size-M166 | 3D Download | 2D Download |
M12 male front mount socket power type 2S solder screw M16*1.5 | M12S-02PBM-GW16 | ||
M12 male front mount socket power type 2PS solder screw M16*1.5 | M12S-03PBM-GW16 | ||
M12 male front mount socket power type 3PS solder screw M16*1.5 | M12S-04PBM-GW16 | ||
M12 male front mount socket power type 2T solder screw M16*1.5 | M12T-02PBM-GW16 | ||
M12 male front mount socket power type 2PT solder screw M16*1.5 | M12T-03PBM-GW16 | ||
M12 male front mount socket power type 3PT solder screw M16*1.5 | M12T-04PBM-GW16 | ||
M12 male front mount socket power type 2K solder screw M16*1.5 | M12K-02PBM-GW16 | ||
M12 male front mount socket power type 2PK solder screw M16*1.5 | M12K-03PBM-GW16 | ||
M12 male front mount socket power type 3PK solder screw M16*1.5 | M12K-04PBM-GW16 | ||
M12 male front mount socket power type 4PK solder screw M16*1.5 | M12K-05PBM-GW16 | ||
M12 male front mount socket power type 2L solder screw M16*1.5 | M12L-02PBM-GW16-N | ||
M12 male front mount socket power type 2FL solder screw M16*1.5 | M12L-03PBM-GW16 | ||
M12 male front mount socket power type 3L solder screw M16*1.5 | M12L-03PBM-GW16-N | ||
M12 male front mount socket power type 3FL solder screw M16*1.5 | M12L-04PBM-GW16 | ||
M12 male front mount socket power type 4L solder screw M16*1.5 | M12L-04PBM-GW16-M | ||
M12 male front mount socket power type 4FL solder screw M16*1.5 | M12L-05PBM-GW16 |
Dimension
Wiring Definition
