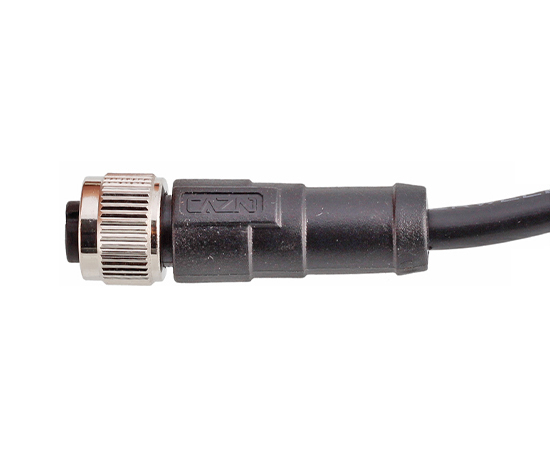

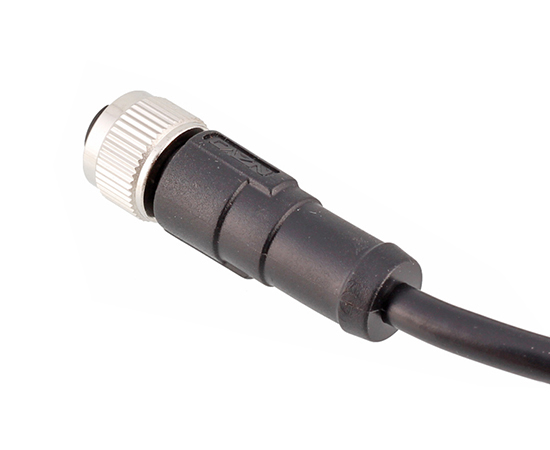

M12 Straight Female Overmolded Plug
TECHNICAL PARAMETER
| Shell material | Brass nickel plating/Zinc alloy nickel/PA+GF |
| Insulator material | PA+GF/TPU |
| Sealing material | Epoxy resin/Rubber |
| Contact material | Brass/Phosphorus copper gold-plated |
| Molding material | TPA/PVC |
| Insulation impedance | ≥ 100 MΩ |
| Contact impedance | ≤ 5 mΩ |
| Durability | ≥ 500 cycles |
| Applicable temperature | -25℃ ~ +80℃ |
| Waterproof | IP65/IP67 |
| Executive standard | IEC 61076-2-101 |
ELECTRICAL PARAMETERS
| Product Name | Pins | Part No.-Shielded | Part No.-Unshielded | 3D Download | 2D Download |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 2A | M12A-02PAF-GM-xVS | M12A-02PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 3A | M12A-03PAF-GM-xVS | M12A-03PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 4A | M12A-04PAF-GM-xVS | M12A-04PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 5A | M12A-05PAF-GM-xVS | M12A-05PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 6A | M12A-06PAF-GM-xVS | M12A-06PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 8A | M12A-08PAF-GM-xVS | M12A-08PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 12A | M12A-12PAF-GM-xVS | M12A-12PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 17A | M12A-17PAF-GM-xVS | M12A-17PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 5B | M12B-05PAF-GM-xVS | M12B-05PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 3C | M12C-03PAF-GM-xVS | M12C-03PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 4C | M12C-04PAF-GM-xVS | M12C-04PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 5C | M12C-05PAF-GM-xVS | M12C-05PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 6C | M12C-06PAF-GM-xVS | M12C-06PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
| M12 Straight Female Overmolded Plug-xx Meters-PVC jacket | 4D | M12D-04PAF-GM-xVS | M12D-04PAF-GM-xV | Shielded/ Unshielded | Shielded/ Unshielded |
*If needing other cable materials please contact our sales.
| Product Catalog | CAZN-M-SERIE-CONNECTOR、CAZN-NMEA-Dedicated-Connector |
| EMC | EMC Certificate |
| RoHS | RoHS Certificate |

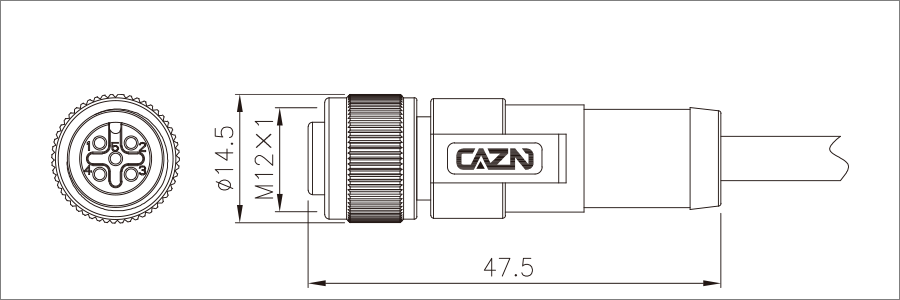

DIMENSION

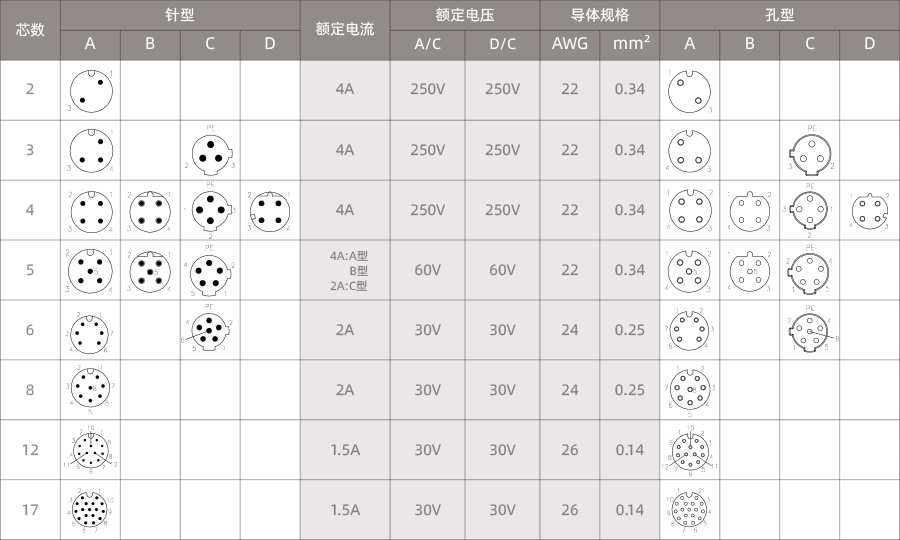

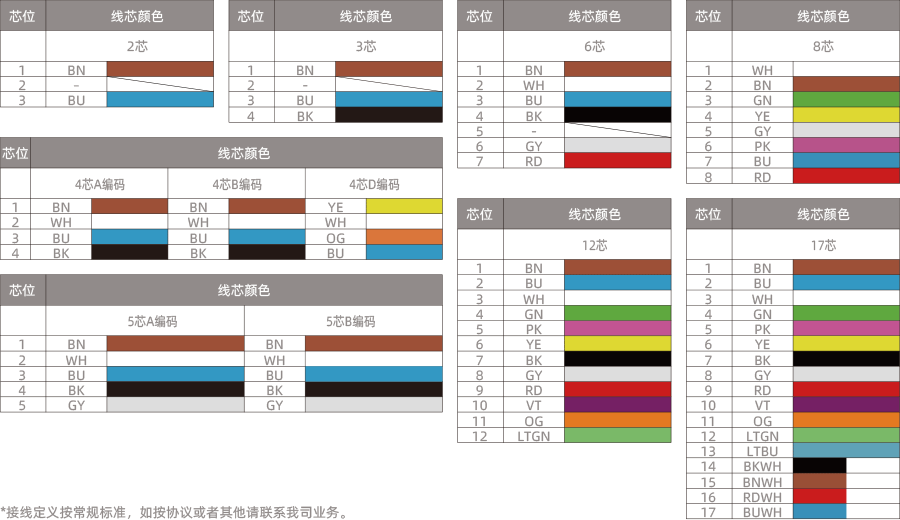

WIRING DEFINITION
