2201
BASICPARAMETERS
| Rated voltage-UL: | - |
| Rated current-UL: | - |
| Rated voltage-IEC: | 450V |
| Rated current-IEC: | 32A |
| Wire range-UL: | 24-12AWG |
| Wire range-IEC: | 0.14-4mm² |
| Wire stripping length: | 11mm/0.43inches |
| Material quality: | PC |
| Flame Rating: | UL94-V2 |
| Conductor material: | Cu |
| Pole number: | 2P，3P，4P，5P |
| Working environment temperature (during operation): | +85℃ |
| Continuous operating temperature: | 105℃ |
| Approval: |   |
| Product Name | Wire range | Pole number | Part No. | 3D Download | 2D Download |
| Line to line terminal - 2201 | 24-12AWG/0.14-4mm² | 2P | 2201-2P | ||
| Line to line terminal - 2201 | 24-12AWG/0.14-4mm² | 3P | 2201-3P | ||
| Line to line terminal - 2201 | 24-12AWG/0.14-4mm² | 4P | 2201-4P | ||
| Line to line terminal - 2201 | 24-12AWG/0.14-4mm² | 5P | 2201-5P |
| PRODUCT CATALOG | Terminal Selection Manual |

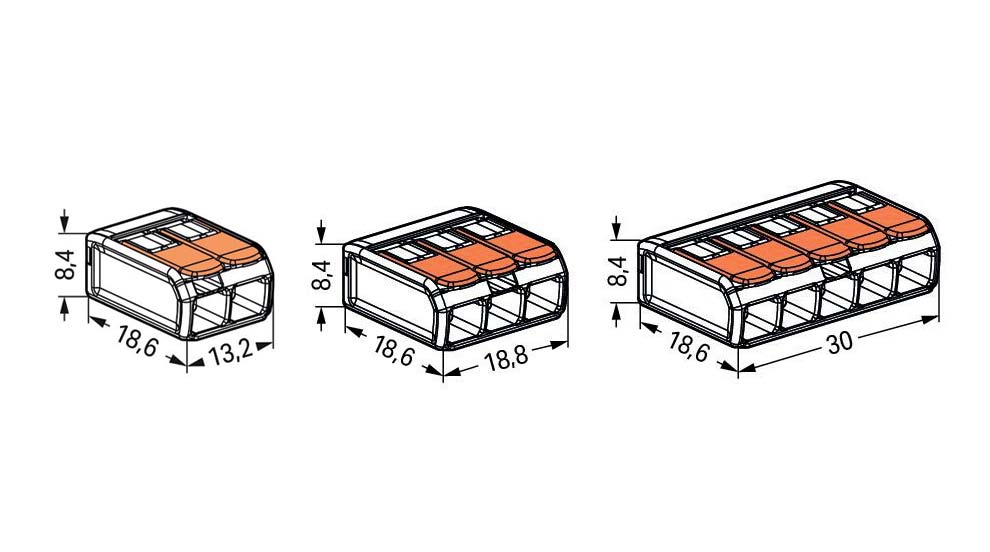

DIMENSION DRAWING
