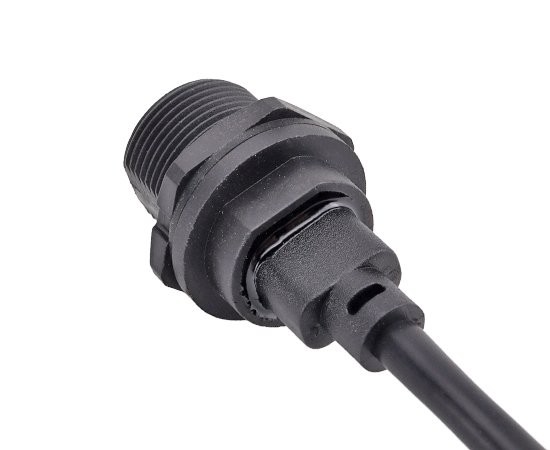

MICRO USB Male to Female Back mount Receptacle Overmolded Cable(Threaded)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T); Bayonet(B) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 30V |
| Rated current | 1.5A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥2000~10000次(Cycles) |
| Product Name | Wire | Shielded | P/N | 3D Download | 2D Download |
| MICRO USB Male to Female Back mount Receptacle Overmolded Cable(Threaded)-xxM | PVC | YES | B10B-MBFF/MBAM-N-xxVS | ||
| MICRO USB Male to Female Back mount Receptacle Overmolded Cable(Threaded)-xxM | PVC | NO | B10B-MBFF/MBAM-N-xxV | ||
| MICRO USB Male to Female Back mount Receptacle Overmolded Cable(Threaded)-xxM | PU | YES | B10B-MBFF/MBAM-N-xxVS | ||
MICRO USB Male to Female Back mount Receptacle Overmolded Cable(Threaded)-xxM | PU | NO | B10B-MBFF/MBAM-N-xxU |
*If you need to order other matching or wire, please consult customer service
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |
DATASHEET
