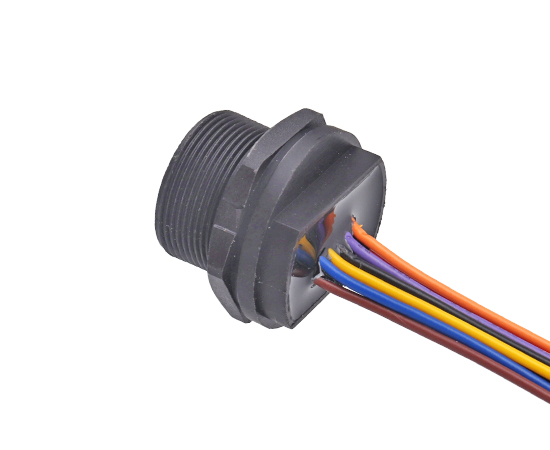

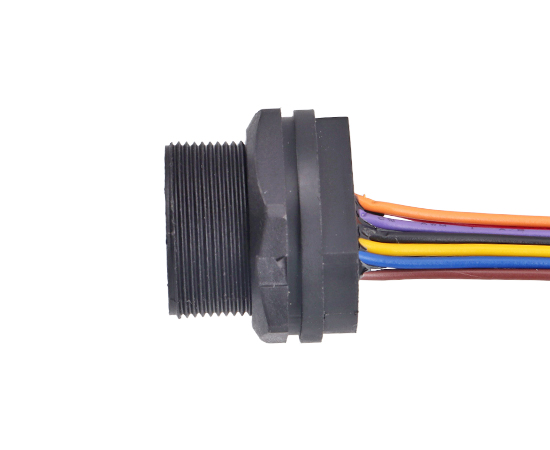

USB Female Back Mount Receptacle with wire(Threaded)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T); Bayonet(B) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 30V |
| Rated current | 1.5A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥2000~10000次(Cycles) |
| Product Name | Standards | Wire | P/N | 3D Download | 2D Download |
| USB Female Back Mount Receptacle with wire(Threaded)-xxM | USB 2.0 | PVC | C13T-B20FF-W-xxV | ↓ | |
| USB Female Back Mount Receptacle with wire(Threaded)-xxM | USB 2.0 | PU | C13T-B20FF-W-xxU | ↓ | |
| USB Female Back Mount Receptacle with wire(Threaded)-xxM | USB 3.0 | PVC | C13T-B30FF-W-xxV | ||
| USB Female Back Mount Receptacle with wire(Threaded)-xxM | USB 3.0 | PU | C13T-B30FF-W-xxU |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

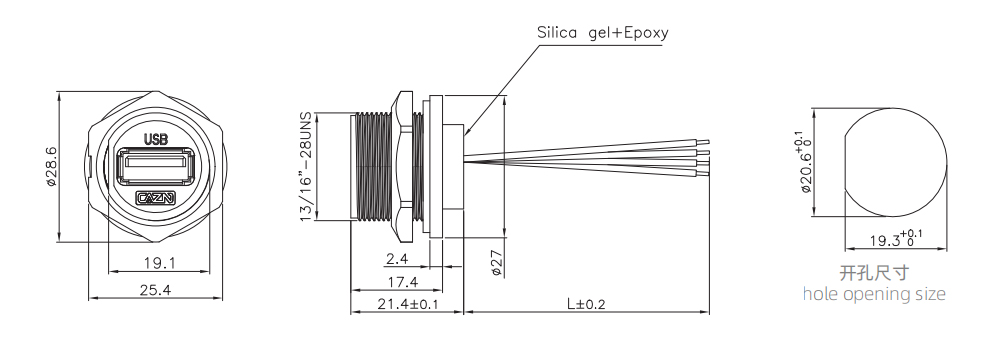

Dimension
