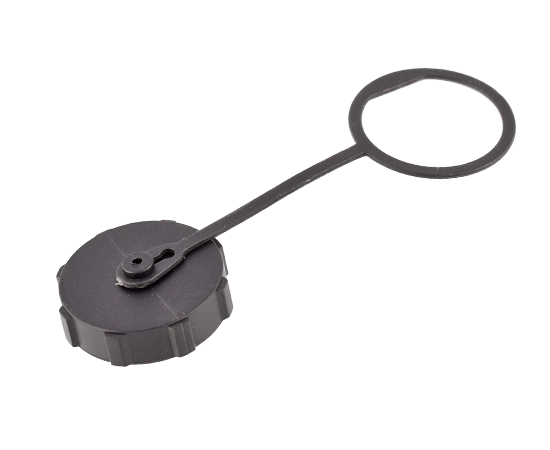

E13 Dust Cover Round Hole(Thread)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~10.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
| Product Name | Coupling | Installation | screw | P/N | 3D Download | 2D Download |
| E13 dust cover | Threaded | Round Hole | 13/16"-28UNS | E13T-VP-ST |  | |
| E13 dust cover | Threaded | Latch | 13/16"-28UNS | E13T-VP-PI | | |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |
Dimension
