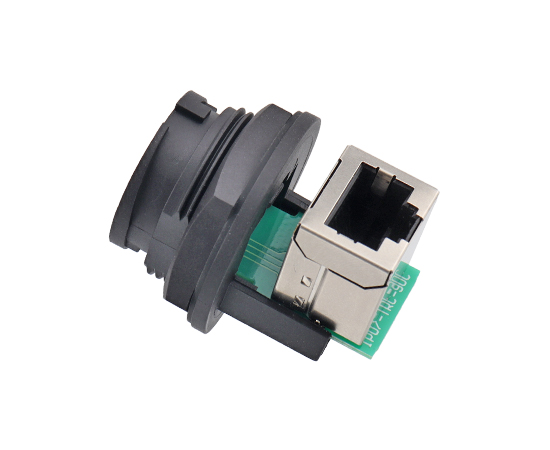

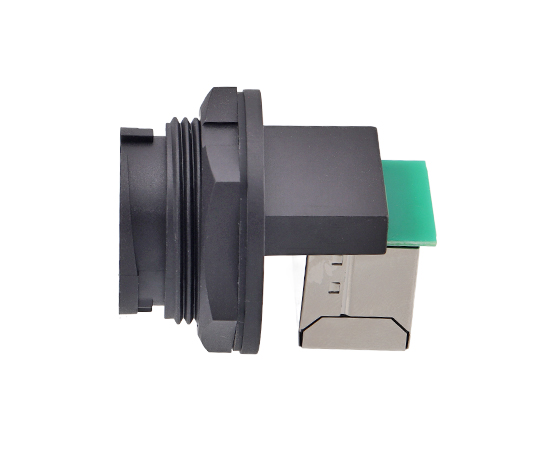

E16RJ45 Female to Female(90°) Back Mount Receptacle(Bayonet)
MECHANICAL PARAMETER
| Shell material： | Thermoplastic PA66 Flame retardant grade：V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Coupling： | Bayonet(B) |
| Termination way： | RJ45 |
| Contact impedance： | ≦20mΩ |
| Durability： | ≥50000次 |
| Insulation resistance： | ≧15MΩ DC300V |
| Applicable temperature： | -25℃ ~ +105℃ |
| Transfer rate： | Conform to 5E/6A Class D/Grade compliant with TIA or EIA 568B and ISO/IEC 11801 |
| Degree of protection： | IP67 |
| Product specifications： | 1"-20UNEF |
| Power frequency withstand voltage： | ≧AC 300V / 1 Minute |
| Salt spray corrosion： | 48H |
| POE： | 60W / 2A |
| Product Name | Pins | P/N | 3D Download | 2D Download |
| E16 ERJ45Female to Female(90°) Back Mount Receptacle(Bayonet) | 5E | E16B-FR5-PPF-90 | ↓ | ↓ |
| PRODUCT CATALOG | CAZN-Plastic waterproof connector series |
| EMC | EMC Certificate、EMC Report、REACH233 Report |
| RoHS | Certificate、Report |
| WATERPROOF TEST REPORT | Certificate、Report |

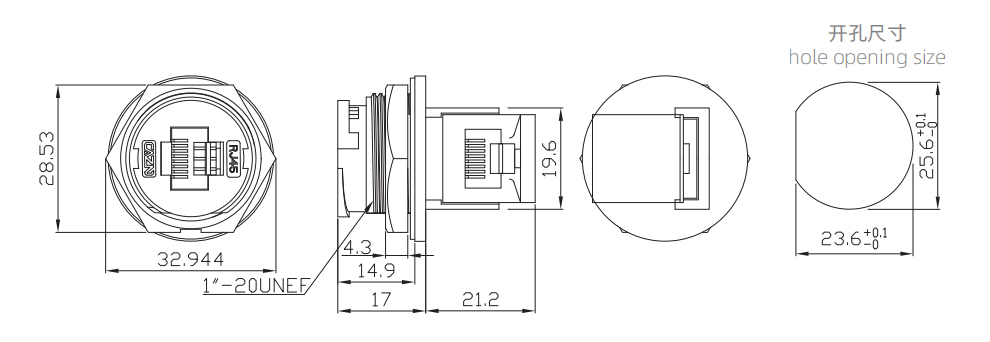

DIMENSIONS
