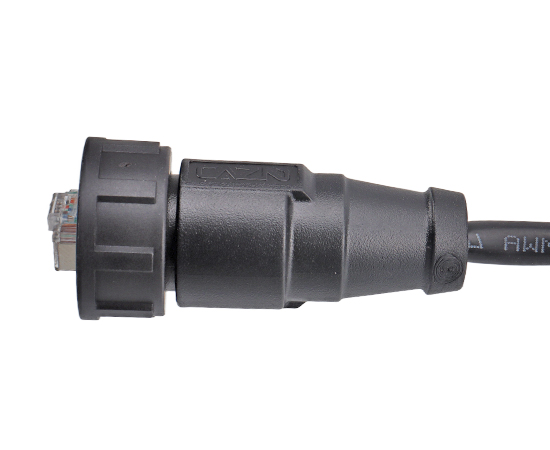

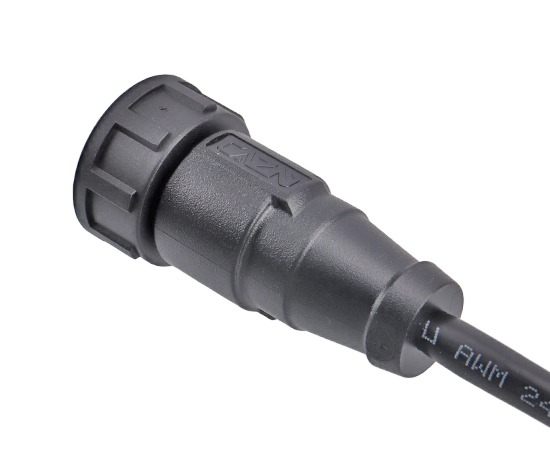

RJ45 Straight Male Overmolded Plug(Threaded)
Mechanical parameter
| Shell material： | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Sealing material： | Epoxy resin/rubber |
| Contact material： | Phosphor copper gold-plated |
| Conform standard: | CAT5e，CAT6a |
| Contact impedance： | ≤5mΩ |
| Durability： | ≥750(Cycles) |
| Applicable temperature： | -30℃ ~ +105℃ |
| Wiring range： | 5.5mm~7.0mm |
| Waterproof grade: | IP67 |
| Product Name | Specification | Cable | Shield | P/N | 3D Download | 2D Download |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 5E | PVC | yes | E13T-MR5-MCA/NCA-xxPV-S | ↓ | ↓ |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 5E | PVC | no | E13T-MR5-MCA/NCA-xxPV | ↓ | ↓ |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 5E | PU | yes | E13T-MR5-MCA/NCA-xxPU-S | ↓ | ↓ |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 5E | PU | no | E13T-MR5-MCA/NCA-xxPU | ↓ | ↓ |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 6E | PVC | yes | E13T-MR6-MCA/NCA-xxPV-S | ↓ | ↓ |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 6E | PVC | no | E13T-MR6-MCA/NCA-xxPV | ↓ | ↓ |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 6E | PU | yes | E13T-MR6-MCA/NCA-xxPU-S | ↓ | ↓ |
| RJ45 Straight Male Overmolded Plug(Threaded)-xxM | 6E | PU | no | E13T-MR6-MCA/NCA-xxPU | ↓ | ↓ |
*If you need to choose other wire, please consult customer service
| Product Catalog | CAZN-Plastic waterproof connector series |
| REACH233 | REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

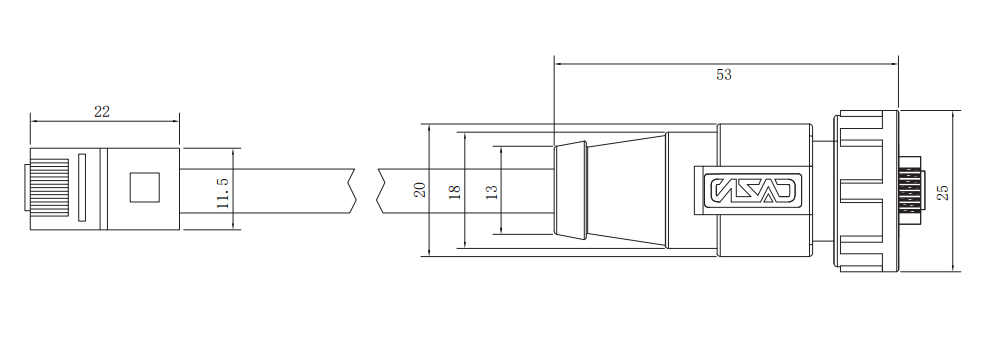

Dimension
