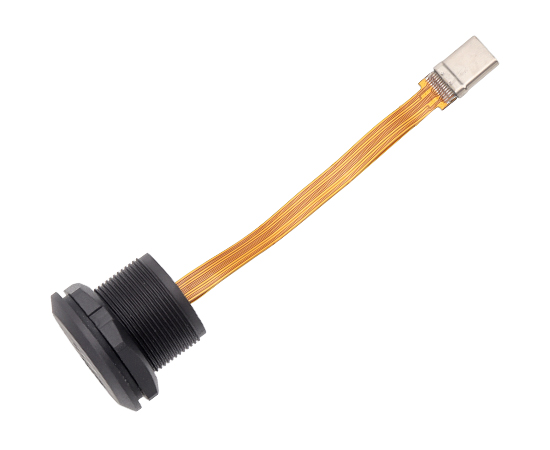

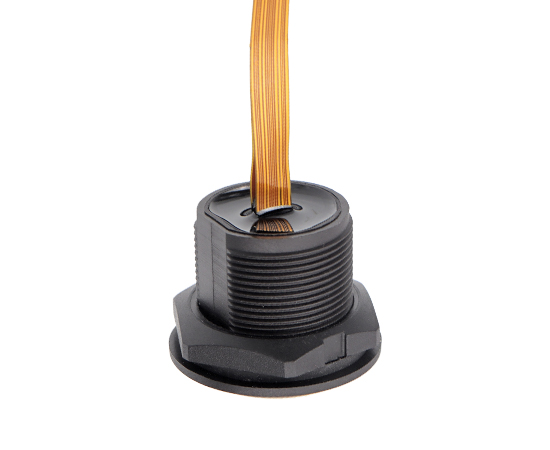

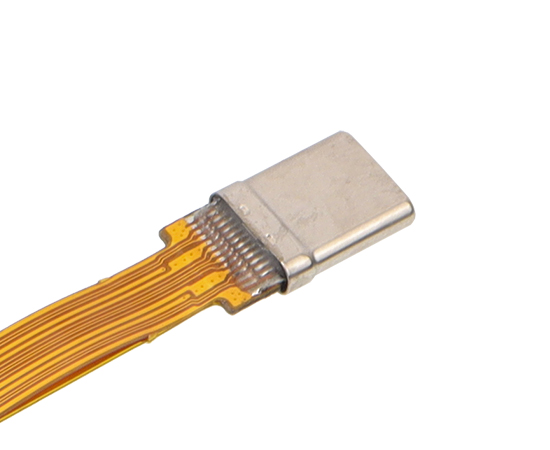

EP-TYPE-C Panel type board front installation female/Male straight FPC socket(Threaded)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass/Phosphor copper gold-plated |
| Sealing material: | Epoxy resin/rubber |
| Coupling: | Thread (T) |
| Termination Way: | Solder |
| Contact impedance: | ≤5mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance: | ≥100mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Waterproof grade: | IP67，IP68 |
| Cable material: | PVC Jacket |
| Rated current: | 1~3A |
| Rated voltage: | 5~20V |
| Product Name | Pins | Model | 3D Download | 2D Download |
EP-TYPE-C Panel type board front installation female /Male straight FPC socket(Threaded) | USB2.0 | EP-FT2-PWF/MT2-NWA-xFPC | ||
EP-TYPE-C Panel type board front installation female /Male straight FPC socket(Threaded) | USB3.0 | EP-FT3-PWF/MT3-NWA-xFPC | ||
EP-TYPE-C Panel type board front installation female /Male straight FPC socket(Threaded) | USB3.1 | EP-FT3.1-PWF/MT3.1-NWA-xFPC | ↓ | |
EP-TYPE-C Panel type board front installation female /Male straight FPC socket(Threaded) | USB4.0 | EP-FT4-PWF/MT4-NWA-xFPC |
*The "x" in the model represents length, measured in meters
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

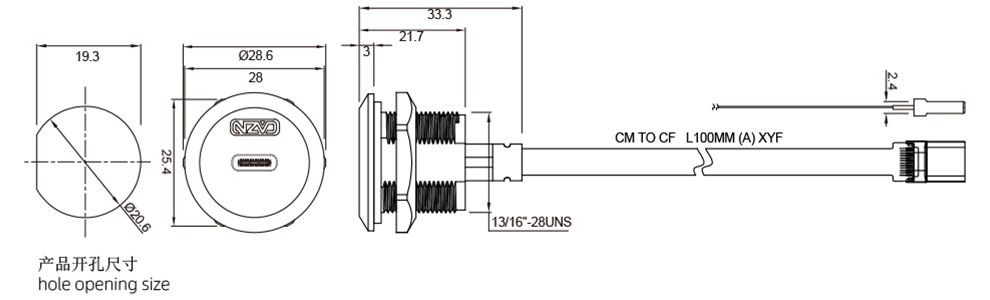

DIMENSIONS
