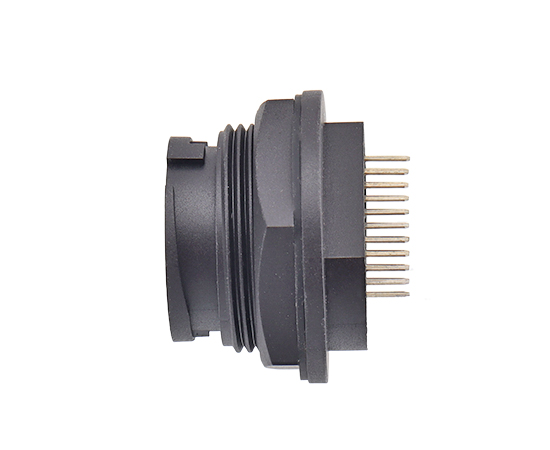

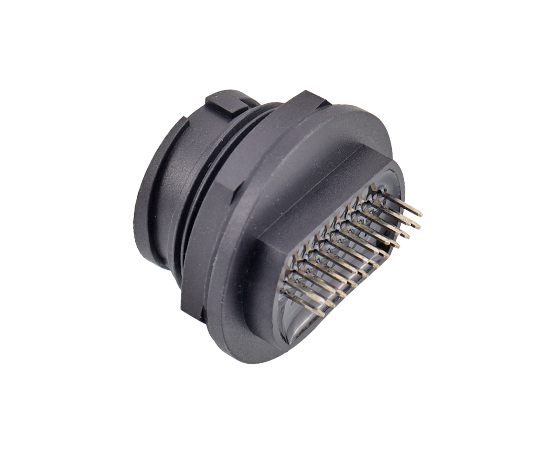

E16HDMI Female Back Mount PCB Receptacle(Bayonet)
TECHNICAL PARAMETER
| Shell material： | PA66+GF UL94 Black |
| Contact material： | Brass Gold plated |
| Sealing material： | silica gel Black |
| Insert material： | PA66+GF UL94 Black |
| Coupling： | Bayonet connection(B) |
| Termination： | Dip solder |
| Contact Resistance： | ≦30mΩ |
| Mating cycles： | ≥500次 |
| Insulation Resistance： | 100MΩ |
| Temperature range： | -45℃ ~ +105℃ |
| Rated current： | 0.5A |
| Degree of protection： | IP67 |
| Product specifications： | 1"-20UNEF |
| Pollution degree： | 3 |
| Product Name | Pins | P/N | 3D Download | 2D Download |
| E16 EHDMI Female Back Mount PCB Receptacle(Bayonet) | HDMI 2K | E16B-FH2-PPF | ||
| E16 EHDMI Female Back Mount PCB Receptacle(Bayonet) | HDMI 4K | E16B-FH4-PPF | ↓ | |
| E16 EHDMI Female Back Mount PCB Receptacle(Bayonet) | HDMI 8K | E16B-FH8-PPF |
| PRODUCT CATALOG | CAZN-Plastic waterproof connector series |
| EMC | EMC Certificate、EMC Report、REACH233 Report |
| RoHS | Certificate、Report |
| WATERPROOF TEST REPORT | Certificate、Report |
DIMENSIONS
PINS ARRANGEMENT
