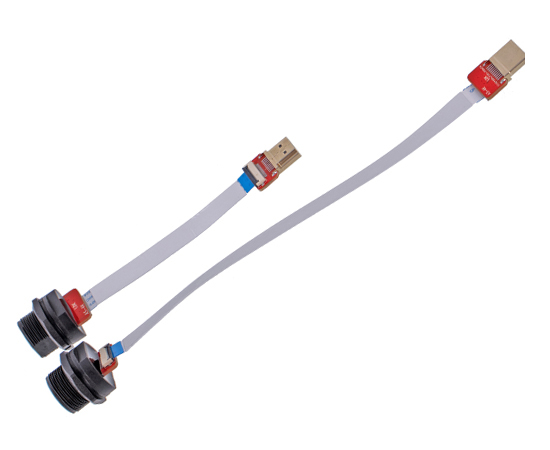

HDMI Female Back mount to Str. HDMI Male FFC Type(Threaded)
Mechanical parameter
| Plastic Material： | PA66, Nylon, Reinforced Nylon, Silicone |
| Metal Material： | Copper gold-plated |
| Coupling： | Threaded lock (T) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability： | ≥10000(Cycles) |
| Insulation resistance： | ≥100 mΩ DC500V |
| Applicable temperature： | -40℃ ~ +105℃ |
| Rated current： | 50 mA |
| Waterproof grade: | IP67 |
| Specification | 13/16"-28UNS |
| Product Name | Specification | P/N | 3D Download | 2D Download |
| HDMI female back mount to Str.HDMI Male FPC Type(Threaded)-xxM-FFC | HDMI-2K | C13T-MI2FF/MI2AM-N-xxFPC | ||
| HDMI female back mount to Str.HDMI Male FPC Type(Threaded)-xxM-FFC | HDMI-4K | C13T-MI4FF/MI4AM-N-xxFPC | ||
| HDMI female back mount to Str.HDMI Male FPC Type(Threaded)-xxM-FFC | HDMI-8K | C13T-MI8FF/MI8AM-N-xxFPC |
*If you need to choose other wire, please consult customer service
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

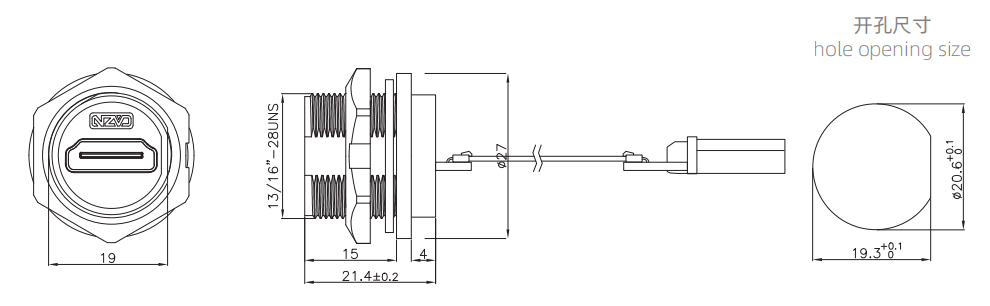

Dimension
