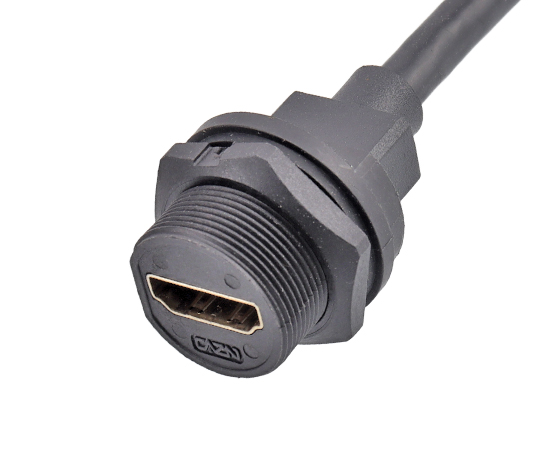

HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)
Mechanical parameter
| Plastic Material： | PA66, Nylon, Reinforced Nylon, Silicone |
| Metal Material： | Copper gold-plated |
| Coupling： | Threaded lock (T) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability： | ≥10000(Cycles) |
| Insulation resistance： | ≥100 mΩ DC500V |
| Applicable temperature： | -40℃ ~ +105℃ |
| Rated current： | 50 mA |
| Waterproof grade: | IP67 |
| Specification | 13/16"-28UNS |
| Product Name | Specification | Cables | Shield | P/N | 3D Download | 2D Download |
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-2K | PVC | YES | C13T-MI2FF/MI2DM-N-xxVS | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-2K | PVC | NO | C13T-MI2FF/MI2DM-N-xxV | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-2K | PU | YES | C13T-MI2FF/MI2DM-N-xxUS | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-2K | PU | NO | C13T-MI2FF/MI2DM-N-xxU | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-2K | PE | YES | C13T-MI2FF/MI2DM-N-xxES | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-2K | PE | NO | C13T-MI2FF/MI2DM-N-xxE | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-4K | PVC | YES | C13T-MI4FF/MI4DM-N-xxVS | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-4K | PVC | NO | C13T-MI4FF/MI4DM-N-xxV | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-4K | PU | YES | C13T-MI4FF/MI4DM-N-xxUS | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-4K | PU | NO | C13T-MI4FF/MI4DM-N-xxU | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-4K | PE | YES | C13T-MI4FF/MI4DM-N-xxES | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-4K | PE | NO | C13T-MI4FF/MI4DM-N-xxE | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-8K | PVC | YES | C13T-MI8FF/MI8DM-N-xxVS | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-8K | PVC | NO | C13T-MI8FF/MI8DM-N-xxV | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-8K | PU | YES | C13T-MI8FF/MI8DM-N-xxUS | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-8K | PU | NO | C13T-MI8FF/MI8DM-N-xxU | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-8K | PE | YES | C13T-MI8FF/MI8DM-N-xxES | ||
| HDMI Female Back Panel Mount Receptacle to R/A Male Cable(Threaded)-xxM | HDMI-8K | PE | NO | C13T-MI8FF/MI8DM-N-xxE |
*If you need to choose other wire, please consult customer service

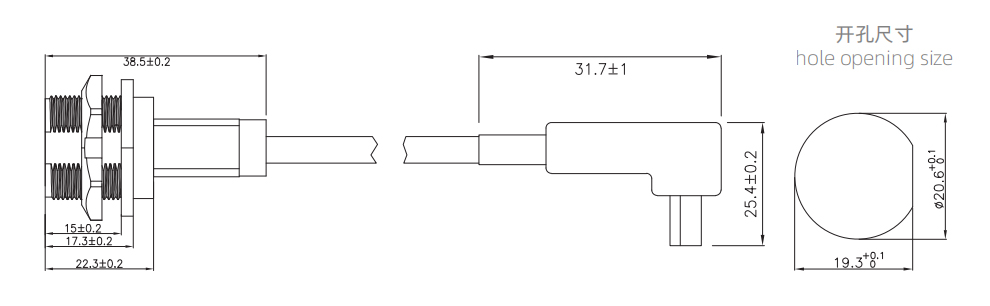

Dimension
