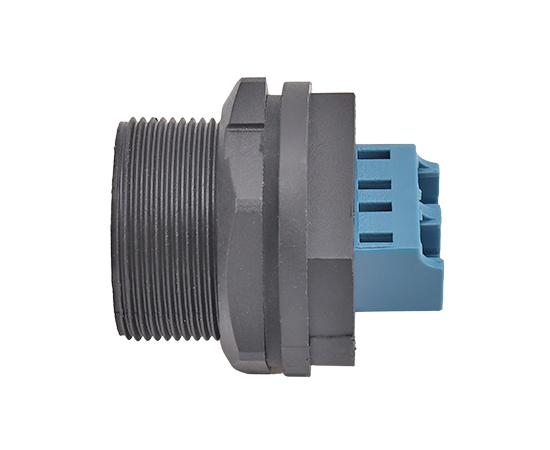

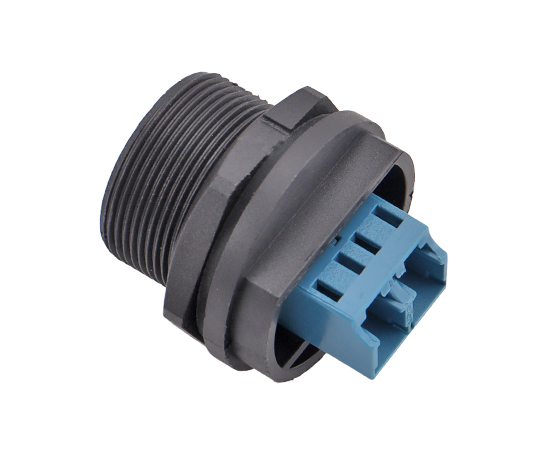

FDDI Single-mode Double-core Back Mount Receptacle(Threaded)

Plastic Waterproof Connector-FDDI Optical Fiber Series

The ergonomic structure is designed for the rigorous testing environment.

Rich in structure, the products are widely used in LED screen, lighting, audio-visual equipment, medical equipment, detection and measurement equipment,

communication industry, telecommunications equipment and other fields,Can meet a variety of customized requirements.

PBT material housing , stable electrical performance , high strength pressure resistance , high temperature resistance , anti - explosion ,

corrosion resistance and effectively respond to environment changes

PDF Download

Shopping

Mechanical parameter

Shell material：	High performance engineering plastics/Metal+Plastic
Flame retardant grade：	UL94-V0
Termination：	Welding/Crimping/Quick plug connect
Waterproof level:	IP67，IP68
Insertion loss：	≤0.2dB
Return Loss：	≥50dB
Applicable temperature：	-25℃ ~ +85℃
Baud rate：	≈200000000Mbit/s

Product Name	Tail fastener	Structure	P/N	3D Download	2D Download
FDDI Single-mode Single-core Front Mount Receptacle(Threaded)	F1:Single-mode Single-core	Front Mount	E13T-FF1-PRB		↓
FDDI Single-mode Double-core Front Mount Receptacle(Threaded)	F2:Single-mode Double-core	Front Mount	E13T-FF2-PRB		↓
FDDI Single-mode Single-core Back Mount Receptacle(Threaded)	F1:Single-mode Single-core	Back Mount	E13T-FF1-PRF		↓

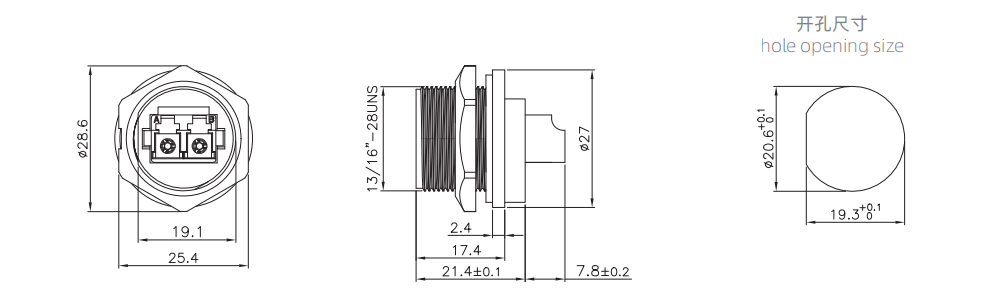

FDDI Single-mode Double-core Back Mount Receptacle(Threaded)	F2:Single-mode Double-core	Back Mount	E13T-FF2-PRF	↓	↓
