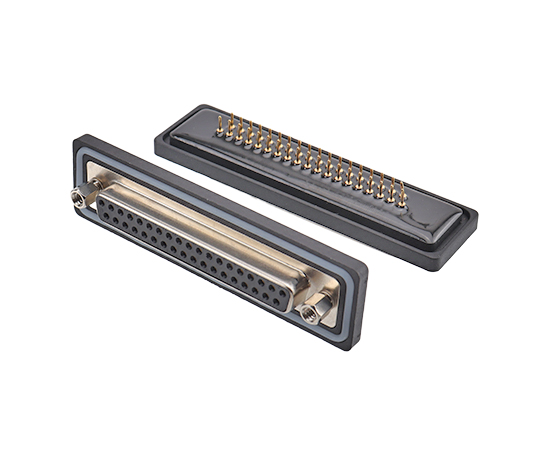

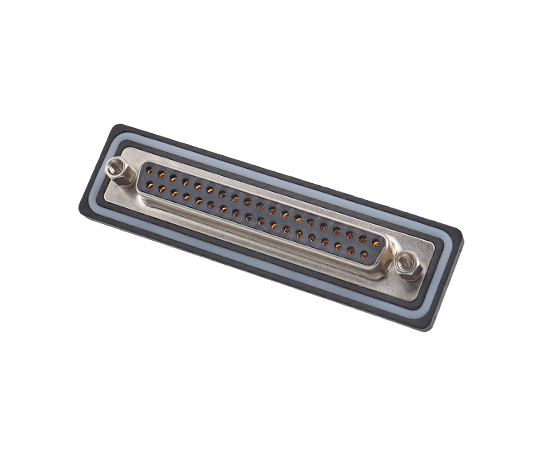

EDB4-Straight Female Socket(PCB)
PRODUCT PARAMETERS
| Rated current： | 10A/20A/30A/40A |
| Rated voltage： | 1000 V |
| Withstand voltage： | 500 V |
| Insulation impedance： | 5000 MΩ |
| Contact impedance： | 10 mΩ |
| Pulling Force： | Products comply with IEC60807-3 |
| Wiring range： | 8mm~14mm |
| Durability： | ≥500次 |
| Applicable temperature： | -55℃ ~ +105℃ |
| Shell material： | Thermoplastic PA66 ,Flame retardant grade：V-0 |
| Waterproof grade： | IP65/IP67 |
| Products comply： | CECC 7501-802.IEC 60807-3 |

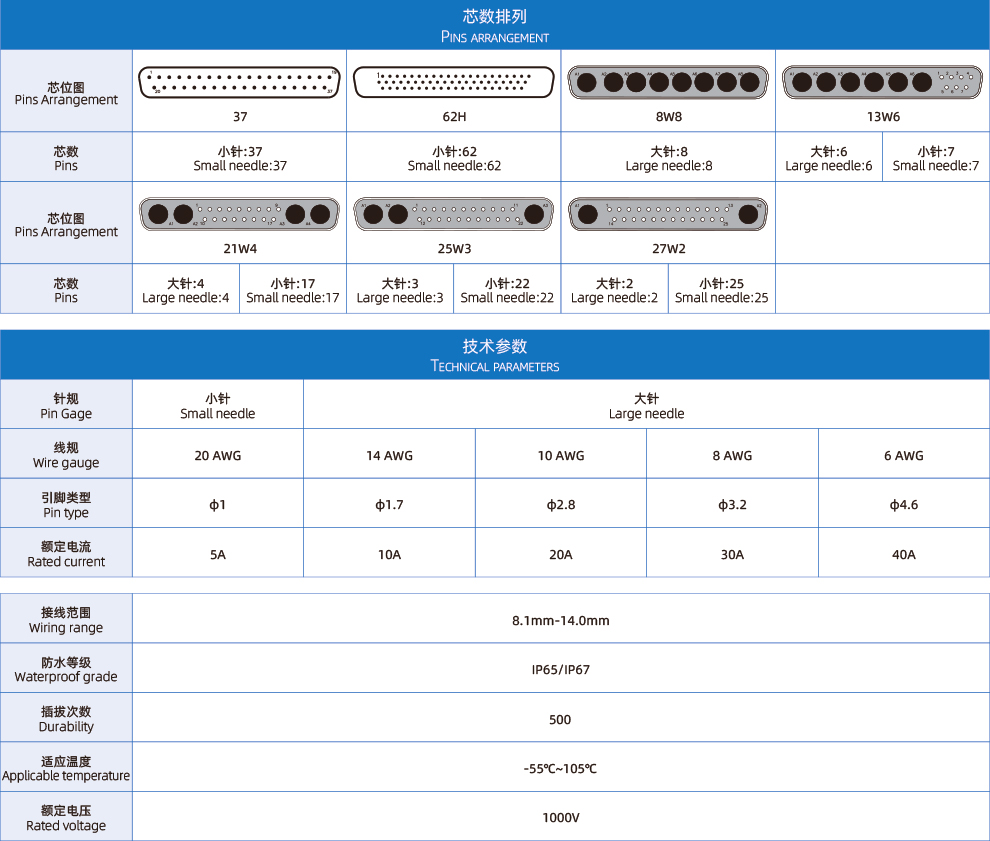

ELECTRICAL PARAMETERS
| Product Name | Pins | Max Pin Wire gauge | Rated current | Model | 3D Download | 2D Download |
| EDB4-Straight Female Socket(PCB) | 37 | 20 AWG | 5A | EDB4-F37-PPA | ↓ | |
| EDB4-Straight Female Socket(PCB) | 62H | 20 AWG | 5A | EDB4-F62H-PPA | ||
| EDB4-Straight Female Socket(PCB) | 8W8 | 20 AWG | 5A | EDB4-F8W8-PPA | ||
| EDB4-Straight Female Socket(PCB) | 13W6 | 20 AWG | 5A | EDB4-F13W6-PPA | ||
| EDB4-Straight Female Socket(PCB) | 21W4 | 20 AWG | 5A | EDB4-F21W4-PPA | ||
| EDB4-Straight Female Socket(PCB) | 25W3 | 20 AWG | 5A | EDB4-F25W3-PPA | ||
| EDB4-Straight Female Socket(PCB) | 27W2 | 20 AWG | 5A | EDB4-F27W2-PPA | ||
| EDB4-Straight Female Socket(PCB) | 8W8 | 14 AWG | 10A | EDB4-F8W8-PPA14 | ||
| EDB4-Straight Female Socket(PCB) | 13W6 | 14 AWG | 5A/10A | EDB4-F13W6-PPA14 | ||
| EDB4-Straight Female Socket(PCB) | 21W4 | 14 AWG | 5A/10A | EDB4-F21W4-PPA14 | ||
| EDB4-Straight Female Socket(PCB) | 25W3 | 14 AWG | 5A/10A | EDB4-F25W3-PPA14 | ||
| EDB4-Straight Female Socket(PCB) | 27W2 | 14 AWG | 5A/10A | EDB4-F27W2-PPA14 | ||
| EDB4-Straight Female Socket(PCB) | 8W8 | 10 AWG | 20A | EDB4-F8W8-PPA10 | ||
| EDB4-Straight Female Socket(PCB) | 13W6 | 10 AWG | 5A/20A | EDB4-F13W6-PPA10 | ||
| EDB4-Straight Female Socket(PCB) | 21W4 | 10 AWG | 5A/20A | EDB4-F21W4-PPA10 | ||
| EDB4-Straight Female Socket(PCB) | 25W3 | 10 AWG | 5A/20A | EDB4-F25W3-PPA10 | ||
| EDB4-Straight Female Socket(PCB) | 27W2 | 10 AWG | 5A/20A | EDB4-F27W2-PPA10 | ||
| EDB4-Straight Female Socket(PCB) | 8W8 | 8 AWG | 30A | EDB4-F8W8-PPA08 | ||
| EDB4-Straight Female Socket(PCB) | 13W6 | 8 AWG | 5A/30A | EDB4-F13W6-PPA08 | ||
| EDB4-Straight Female Socket(PCB) | 21W4 | 8 AWG | 5A/30A | EDB4-F21W4-PPA08 | ||
| EDB4-Straight Female Socket(PCB) | 25W3 | 8 AWG | 5A/30A | EDB4-F25W3-PPA08 | ||
| EDB4-Straight Female Socket(PCB) | 27W2 | 8 AWG | 5A/30A | EDB4-F27W2-PPA08 | ||
| EDB4-Straight Female Socket(PCB) | 8W8 | 6 AWG | 40A | EDB4-F8W8-PPA06 | ||
| EDB4-Straight Female Socket(PCB) | 13W6 | 6 AWG | 5A/40A | EDB4-F13W6-PPA06 | ||
| EDB4-Straight Female Socket(PCB) | 21W4 | 6 AWG | 5A/40A | EDB4-F21W4-PPA06 | ||
| EDB4-Straight Female Socket(PCB) | 25W3 | 6 AWG | 5A/40A | EDB4-F25W3-PPA06 | ||
| EDB4-Straight Female Socket(PCB) | 27W2 | 6 AWG | 5A/40A | EDB4-F27W2-PPA06 |
| PRODUCT CATALOG | CAZN-Plastic waterproof connector series |
| EMC | EMC Certificate、EMC Report、REACH233 Report |
| RoHS | Certificate、Report |
| WATERPROOF TEST REPORT | Certificate、Report |

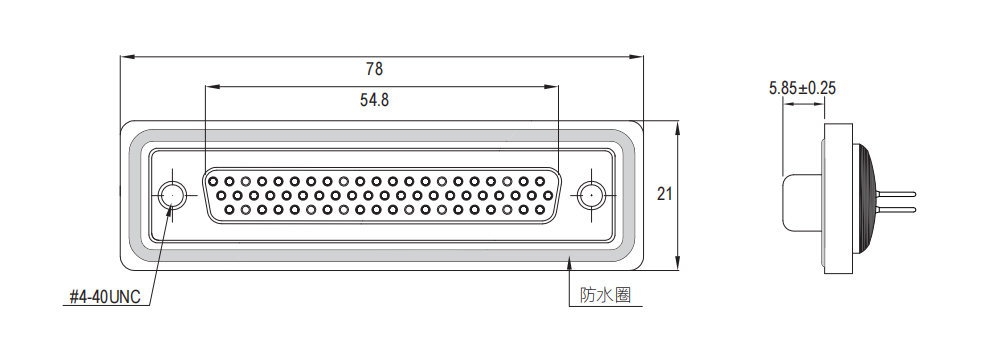

DIMENSIONS
