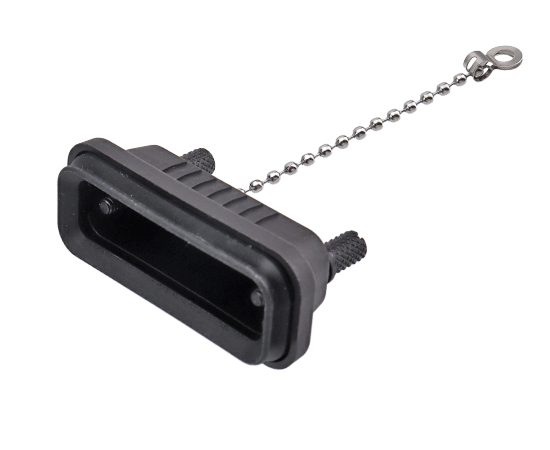

EDB2 - Dust cover
MECHANICAL PARAMETERS
| Dust cover material： | PA66 |
| Connect with material： | Irony |
| Waterproof ring material： | silica gel |
| Working temperature ： | -40℃～80℃ |
| Waterproof grade： | IP67 |
| Fire retardant grade： | UL94-V0 |
ELECTRICAL PARAMETERS
| Product Name | Type | Model | 3D Download | 2D Download |
| EDB2-Plastic Dust Cover | Apply to the plug | EDB2-VP-BZ | ↓ | ↓ |
| EDB2-Plastic Dust Cover | Apply to the plug | EDB2-VS-BZ | ↓ | ↓ |
| PRODUCT CATALOG | CAZN-Plastic waterproof connector series |
| EMC | EMC Certificate、EMC Report、REACH233 Report |
| RoHS | Certificate、Report |
| WATERPROOF TEST REPORT | Certificate、Report |

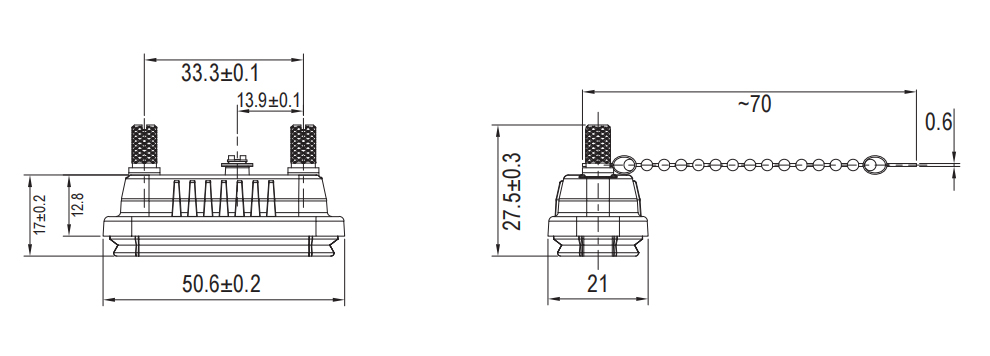

DIMENSIONS
