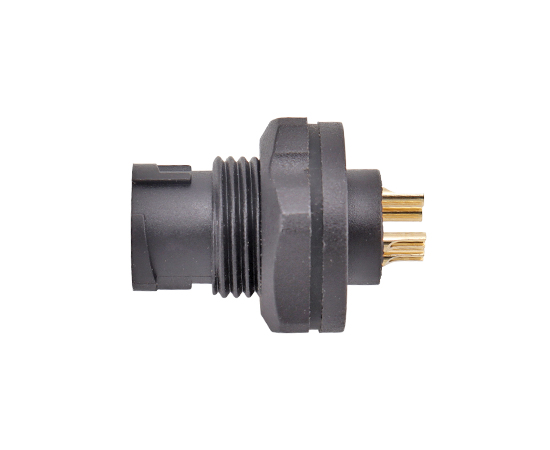

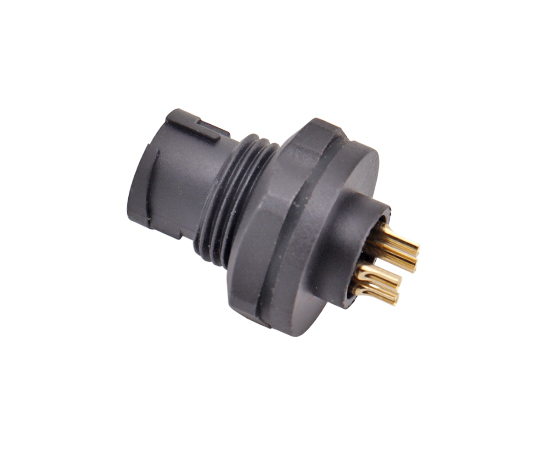

E7 Male Back Mount Solder Receptacle(Bayonet)
Mechanical parameter
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass/Phosphor copper gold-plated |
| Sealing material: | Epoxy resin/rubber |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Contact impedance: | ≤5mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance: | ≥100mΩ |
| Applicable temperature: | -25℃ ~ +105℃ |
| Cable diameter: | 3.5mm~6.8mm |
| Waterproof grade: | IP67，IP68 |
| Screw size | 7/16"-28UNS |
Electrical parameters

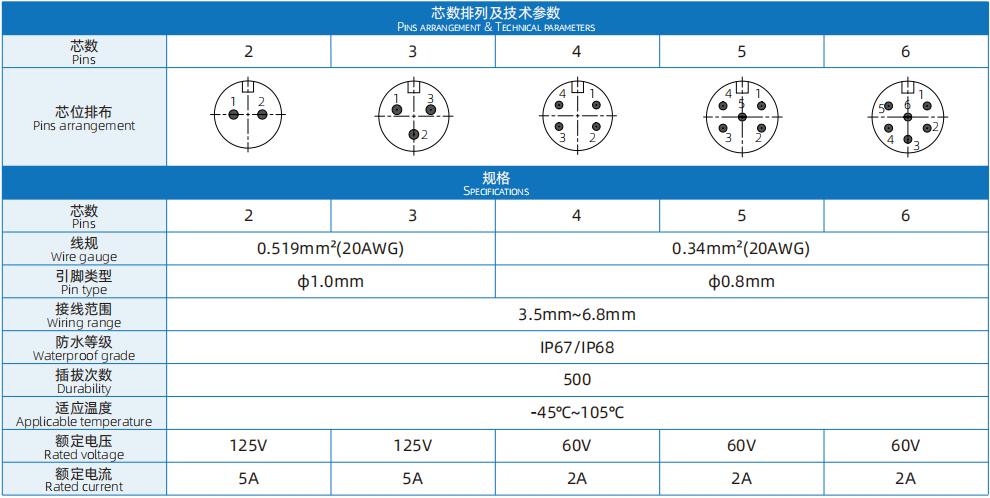

| Product Name | Rated Voltage | Rated Current | Pins | P/N | 3D Download | 2D Download |
| E7 Male Back Mount Solder Receptacle(Bayonet) | 125V | 5A | 2 | E7B-P2-PWF |
|
|
| E7 Male Back Mount Solder Receptacle(Bayonet) | 125V | 5A | 3 | E7B-P3-PWF |
|
|
| E7 Male Back Mount Solder Receptacle(Bayonet) | 60V | 2A | 4 | E7B-P4-PWF |
|
|
| E7 Male Back Mount Solder Receptacle(Bayonet) | 60V | 2A | 5 | E7B-P5-PWF |
|
|
| E7 Male Back Mount Solder Receptacle(Bayonet) | 60V | 2A | 6 | E7B-P6-PWF |
|
|
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

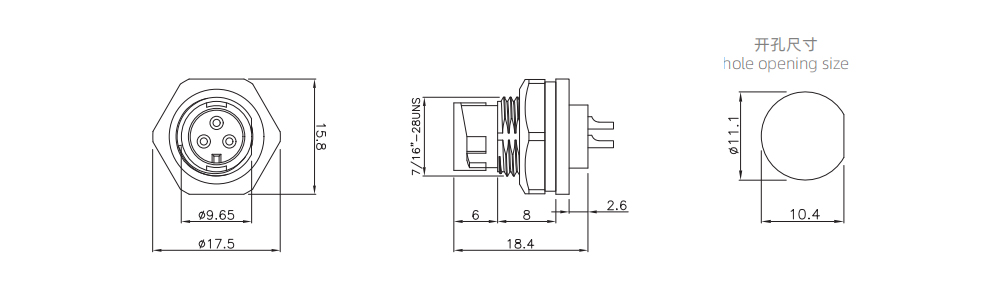

Dimensions
