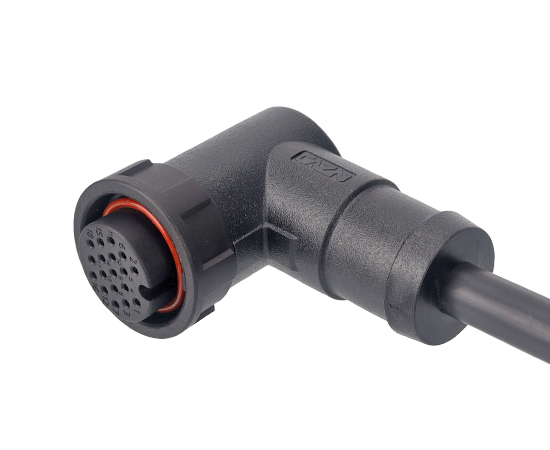

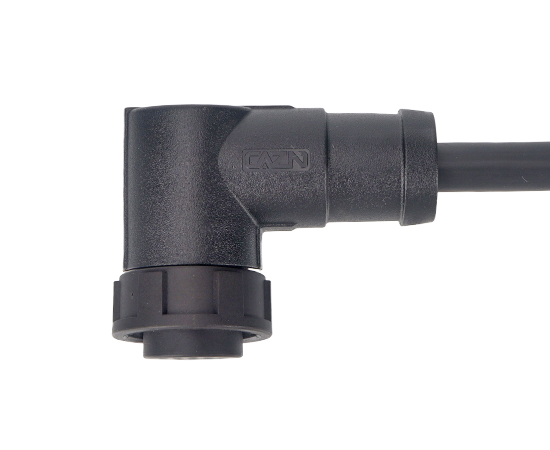

E16 Right angle Female Overmolded Plug(Bayonet)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~13.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 1"-20UNEF |
| Rated current: | 250~600V AC/DC |
ELECTRICAL PARAMETERS
| ProductName | Pins | P/N | 3DDownload | 2DDownload |
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 2 | E16B-S2-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 3 | E16B-S3-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 4 | E16B-S4-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 5 | E16B-S5-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 6 | E16B-S6-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 7 | E16B-S7-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 18 | E16B-S18-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 20 | E16B-S20-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 21 | E16B-S21-MWA-xxPV | ||
| E16 Straight Female Overmolded Plug(Bayonet)-xxM-PVC | 22 | E16B-S22-MWA-xxPV |
*If you need to choose other wire, please consult customer service
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |
DIMENSIONS
