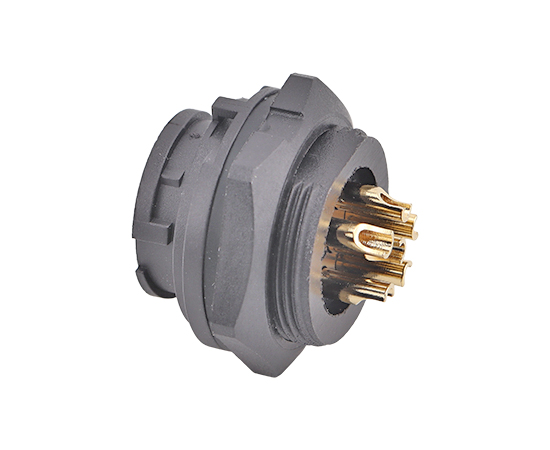

E13 Female Front Mount Solder Receptacle(Bayonet)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~10.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
ELECTRICAL PARAMETERS
| Product Name | Pins | P/N | 3D Download | 2D Download |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 2 | C13B-02PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 3 | C13B-03PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 4 | C13B-04PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 5 | C13B-05PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 6 | C13B-06PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 7 | C13B-07PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 8 | C13B-08PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 9 | C13B-09PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 10 | C13B-10PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 12 | C13B-12PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 14 | C13B-14PBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 2B | C13B-02BPBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 3B | C13B-03BPBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 4B | C13B-04BPBF-W | ↓ | |
| E13 Female Front Mount Solder Receptacle(Bayonet) | 8C | C13B-08CPBF-W |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

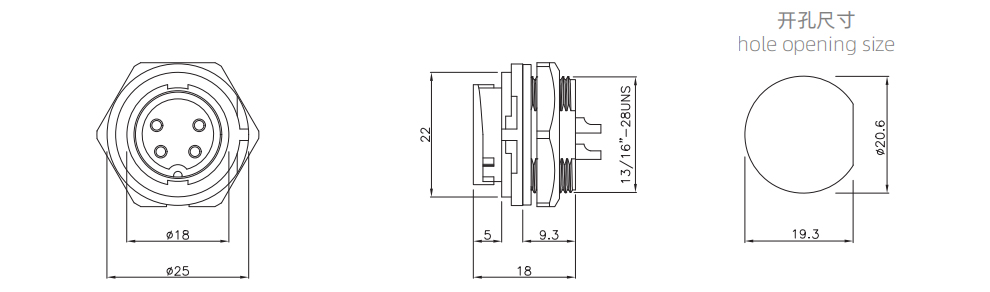

DIMENSION
