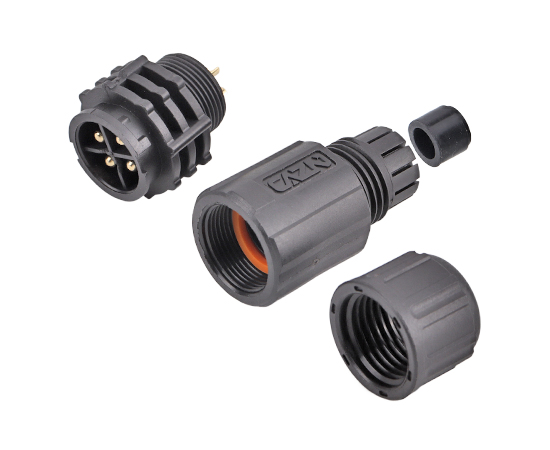

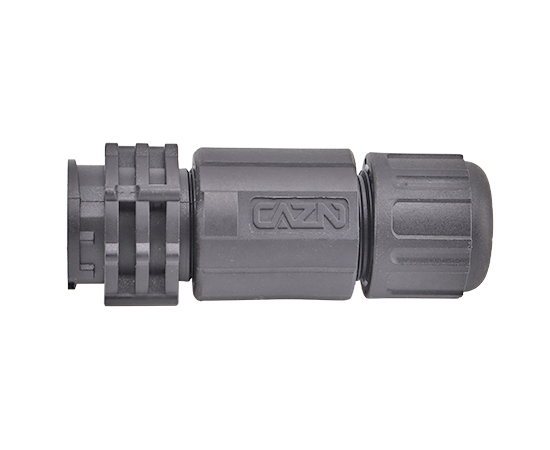

E13 Straight Male Field Installable Mating Plug(Bayonet)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~10.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
ELECTRICAL PARAMETERS
| Product Name | Pins | P/N(ODф8) | P/N(ODф10) | 3D Download | 2D Download |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 2 | C13B-02PKM-W8 | C13B-02PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 3 | C13B-03PKM-W8 | C13B-03PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 4 | C13B-04PKM-W8 | C13B-04PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 5 | C13B-05PKM-W8 | C13B-05PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 6 | C13B-06PKM-W8 | C13B-06PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 7 | C13B-07PKM-W8 | C13B-07PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 8 | C13B-08PKM-W8 | C13B-08PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 9 | C13B-09PKM-W8 | C13B-09PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 10 | C13B-10PKM-W8 | C13B-10PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 12 | C13B-12PKM-W8 | C13B-12PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 14 | C13B-14PKM-W8 | C13B-14PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 18 | C13B-18PKM-W8 | C13B-18PKM-W10 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 2B | C13B-02BPKM-W8-01 | C13B-02BPKM-W10-01 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 3B | C13B-03BPKM-W8-01 | C13B-03BPKM-W10-01 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 4B | C13B-04BPKM-W8-01 | C13B-04BPKM-W10-01 | ф8/ф10 | |
| E13 Straight Male Mating Assembled Plug(Bayonet) | 8C | C13B-08CPKM-W8 | C13B-08CPKM-W10 |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

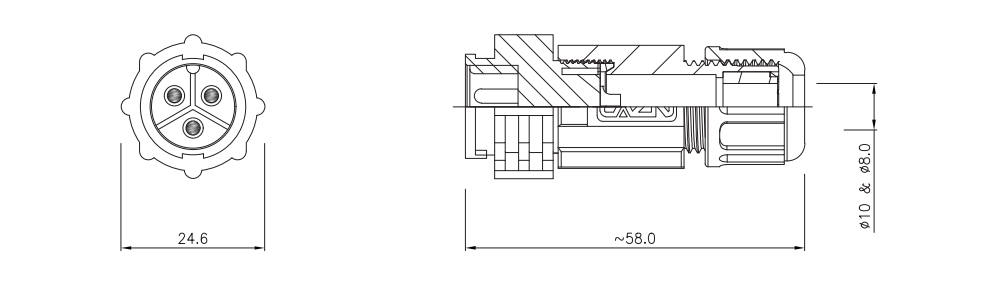

DIMENSION
