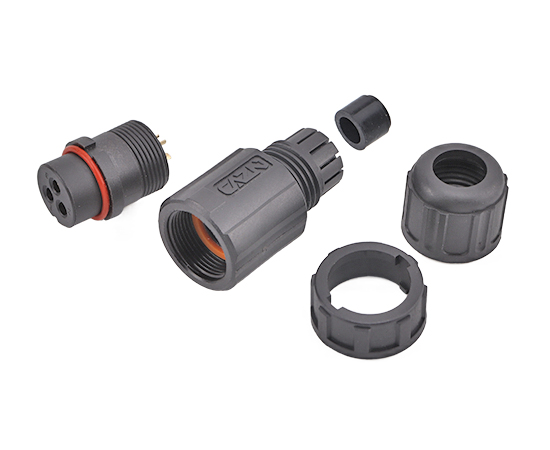

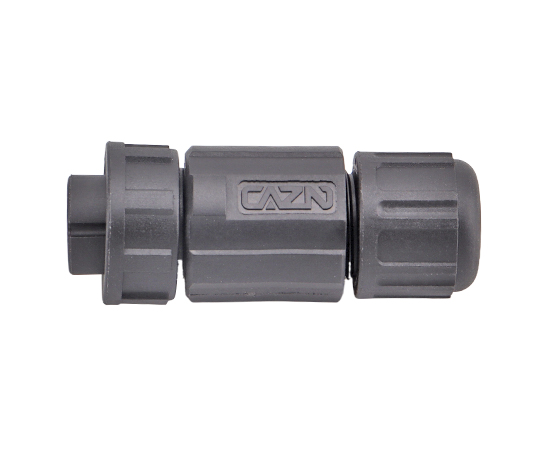

E13 Straight Female Field Installable Plug(Bayonet)
MECHANICAL PARAMETER
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Copper gold-plated |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Solder： | ≥500 Cycles |
| Insulation resistance: | ≥2000mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Wiring range: | 6.0mm~10.0mm |
| Waterproof grade: | IP67，IP68 |
| Specifications: | 13/16"-28UNS |
ELECTRICAL PARAMETERS
| Product Name | Pins | P/N(ODф8) | P/N(ODф10) | 3D Download | 2D Download |
| E13 Straight Female Assembled Plug(Bayonet) | 2 | C13B-02PAF-W8 | C13B-02PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 3 | C13B-03PAF-W8 | C13B-03PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 4 | C13B-04PAF-W8 | C13B-04PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 5 | C13B-05PAF-W8 | C13B-05PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 6 | C13B-06PAF-W8 | C13B-06PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 7 | C13B-07PAF-W8 | C13B-07PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 8 | C13B-08PAF-W8 | C13B-08PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 9 | C13B-09PAF-W8 | C13B-09PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 10 | C13B-10PAF-W8 | C13B-10PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 12 | C13B-12PAF-W8 | C13B-12PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 14 | C13B-14PAF-W8 | C13B-14PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 18 | C13B-18PAF-W8 | C13B-18PAF-W10 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 2B | C13B-02BPAF-W8-01 | C13B-02BPAF-W10-01 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 3B | C13B-03BPAF-W8-01 | C13B-03BPAF-W10-01 | ф8/ф10 | |
| E13 Straight Female Assembled Plug(Bayonet) | 4B | C13B-04BPAF-W8-01 | C13B-04BPAF-W10-01 | ↓ | ф8/ф10 |
| E13 Straight Female Assembled Plug(Bayonet) | 8C | C13B-08CPAF-W8 | C13B-08CPAF-W10 | ↓ | ф8/ф10 |
| Product Catalog | CAZN-Plastic Waterproof Connector brochures |
| EMC | EMC Report、EMCReport、REACH233Report |
| RoHS | Certificate、Report |
| Waterproof test report | Certificate、Report |

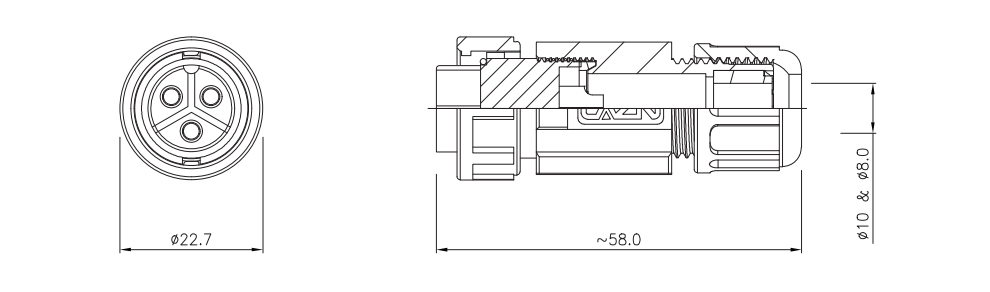

DIMENSIONS
