6x6x7
BASICPARAMETERS
| Rated voltage-UL: | - |
| Rated current-UL: | - |
| Rated voltage-IEC: | 400V |
| Rated current-IEC: | 15-45A |
| Wire range-UL: | 22-14AWG |
| Wire range-IEC: | 2.5mm² |
| Size: | 6x6x7 |
| Material quality: | Brass |
| Aperture: | 4.5mm |
| Screw: | M3 |
| Operating temperature: | -50℃ ~ +150℃ |
| Approval: |   |
| Product Name | Size | Aperture | Screw | Part No. | 3D Download | 2D Download |
| Copper terminal | 4.5x5.5x6-Flat bottomed | 3.3 | M2.5 | 4.5x5.5x6 | ||
| Copper terminal | 5x5x5-Flat bottomed | 2.6 | M2.5 | 5x5x5 | ||
| Copper terminal | 5x5x6 | 3.5 | M3 | 5x5x6 | ||
| Copper terminal | 5x5x6-Spacer | 3.5 | M3 | 5x5x6 | ||
| Copper terminal | 6x6x6 | 3.5 | M3 | 6x6x6 | ||
| Copper terminal | 6x6x7 | 4.5 | M3 | 6x6x7 | ||
| Copper terminal | 8x8x9 | 5.5 | M3 | 8x8x9 |
| PRODUCT CATALOG | Terminal Selection Manual |

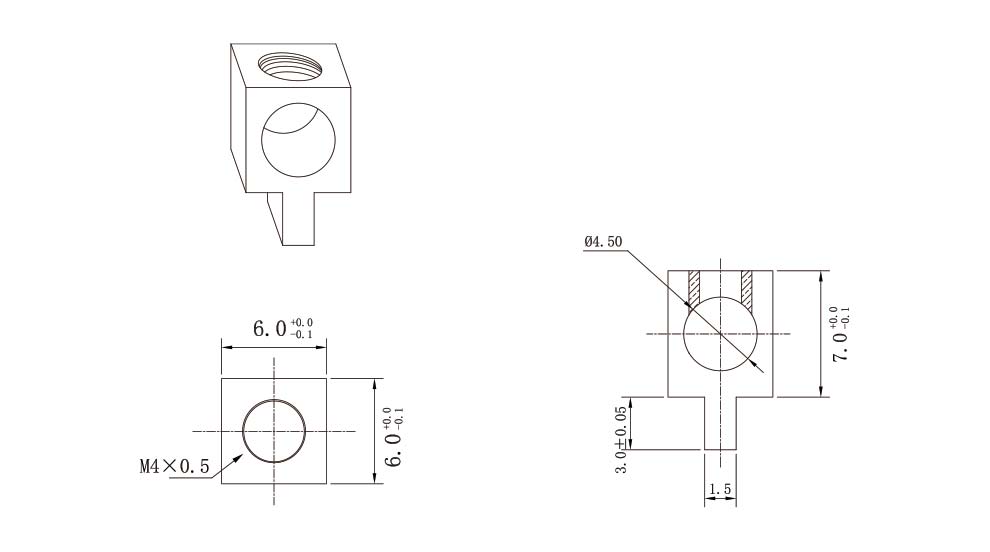

DIMENSION DRAWING
