TECHNICAL PARAMETERS
Shell Material | Aluminum alloy |
Shell Finish | Olive drab chromate coating over |
Shell Alternative finish | Black over zinc plating(RoHs) |
Insulator and grommets | Synethetic rubber |
Contacts | Copper alloy |
Contacts Finish | Gold plate |
Ambient temperature | -55℃ ~ +125℃ |
Mating cycles | ≥ 500 Cycle |
Water pressure | 48 hours in 6 feet per MIL-DTL-26482 3.6.14 |
Humidity | 20-day 50 to 90% humidity teating per MIL-DTL-26482 3.6.25 |
Salt spray | Unmated connectors and protective covers meet 48 hour exposure per EIA364.26 and MIL-DTL-26482 3.6.19 |
Vibration | 10μs max at 10 to 2000Hz(15g) discontinuity per EIA364.28 and MIL-DTL-26482 3.6.21 |
Shock | 50g’s/11ms duration.three major axes 10μs max discontinuity per EIA364.27 and MIL-DTL-26482 3.6.23 |
Product Name | Shell Size | Tail Material | Model Name | 3D Download | 2D Download |
Cover protecting caps for receptacles | C8 | Chain | ZC3180-8C | ||
Cover protecting caps for receptacles | C8 | Rope | ZC3180-8R | ||
Cover protecting caps for receptacles | C8 | Nylon cord | ZC3180-8D | ||
Cover protecting caps for receptacles | C10 | Chain | ZC3180-10C | ||
Cover protecting caps for receptacles | C10 | Rope | ZC3180-10R | ||
Cover protecting caps for receptacles | C10 | Nylon cord | ZC3180-10D | ||
Cover protecting caps for receptacles | C12 | Chain | ZC3180-12C | ||
Cover protecting caps for receptacles | C12 | Rope | ZC3180-12R | ||
Cover protecting caps for receptacles | C12 | Nylon cord | ZC3180-12D | ||
Cover protecting caps for receptacles | C14 | Chain | ZC3180-14C | ||
Cover protecting caps for receptacles | C14 | Rope | ZC3180-14R | ||
Cover protecting caps for receptacles | C14 | Nylon cord | ZC3180-14D | ||
Cover protecting caps for receptacles | C16 | Chain | ZC3180-16C | ||
Cover protecting caps for receptacles | C16 | Rope | ZC3180-16R | ||
Cover protecting caps for receptacles | C16 | Nylon cord | ZC3180-16D | ||
Cover protecting caps for receptacles | C18 | Chain | ZC3180-18C | ||
Cover protecting caps for receptacles | C18 | Rope | ZC3180-18R | ||
Cover protecting caps for receptacles | C18 | Nylon cord | ZC3180-18D | ||
Cover protecting caps for receptacles | C20 | Chain | ZC3180-20C | ||
Cover protecting caps for receptacles | C20 | Rope | ZC3180-20R | ||
Cover protecting caps for receptacles | C20 | Nylon cord | ZC3180-20D | ||
Cover protecting caps for receptacles | C22 | Chain | ZC3180-22C | ||
Cover protecting caps for receptacles | C22 | Rope | ZC3180-22R | ||
Cover protecting caps for receptacles | C22 | Nylon cord | ZC3180-22D | ||
Cover protecting caps for receptacles | C24 | Chain | ZC3180-24C | ||
Cover protecting caps for receptacles | C24 | Rope | ZC3180-24R | ||
Cover protecting caps for receptacles | C24 | Nylon cord | ZC3180-24D |
Note: Please consult customer service.
Related Album | |
Related Album | |
Related Album |

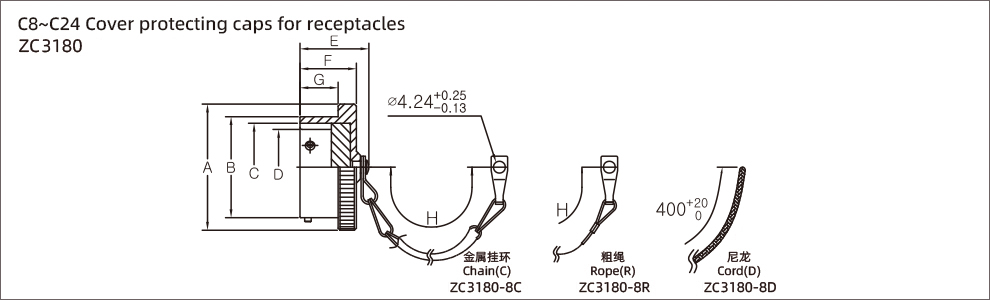

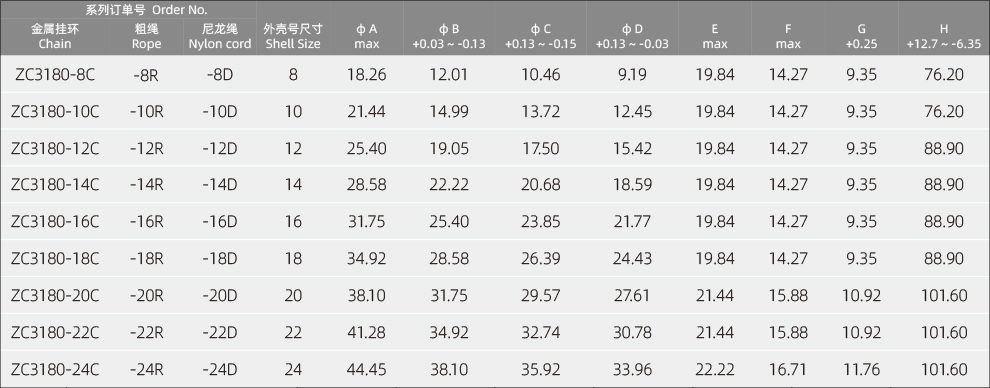

C8~C24 DIMENSIONAL DRAWING
